Dual-mass Flywheel Installation Note

Clean the crankshaft thread holes.
Install the dual-mass flywheel to the crankshaft.
Lock the dual-mass flywheel against rotation using the SST (49 E011 1A0).

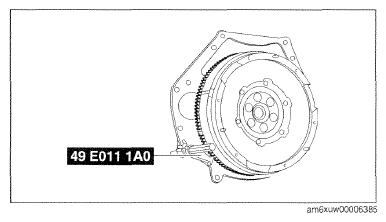

Fig 1: Locking Dual-Mass Flywheel Against Rotation Using SST
Courtesy of MAZDA MOTORS CORP.
Temporarily tighten the new lock bolts.
Tighten the lock bolts uniformly and gradually in the order shown in the figure.

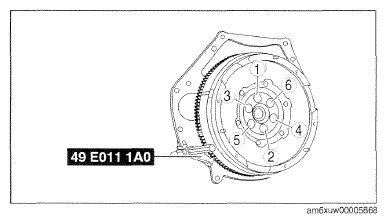

Fig 2: Lock Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

152-160 N.m {15.5-16.3 kgf.m, 113-118 ft.lbf}
