Tie Rod Disassembly Note

  1. Lock the steering rack end (pinion gear side) against rotation using a wrench and remove the tie rod using the SST.

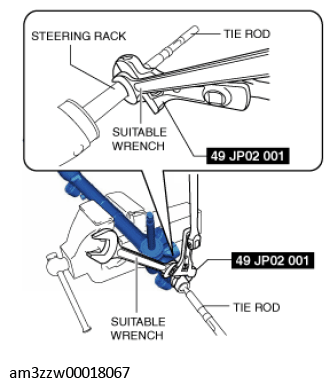

Fig 1: Removing Tie Rod Using SST
G11539465Courtesy of MAZDA MOTORS CORP.
