Auto-stop Operation Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the battery voltage to windshield wiper motor terminal A, connect the ground to motor terminal D, and operate the windshield wiper motor at low speed.
  2. Disconnect the battery voltage from terminal A during windshield wiper LO operation, and stop the windshield wiper motor halfway.
  3. Connect windshield wiper motor terminals A and E using a jumper wire.
  4. Connect the battery positive voltage to windshield wiper motor terminal C.
    Fig 1: Connecting Battery Positive Voltage To Windshield Wiper Motor Terminal C
    G09077563Courtesy of MAZDA MOTORS CORP.
  5. After the windshield wiper motor auto-stop operation, verify that it stops at the park position.

    If there is any malfunction, replace the windshield wiper motor. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)

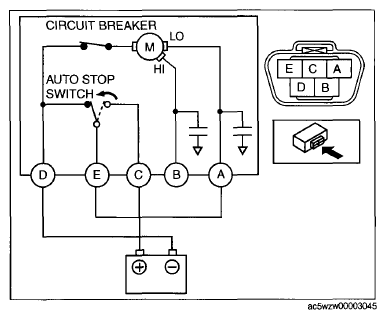

    Fig 2: Connecting Battery Positive Voltage To Windshield Wiper Motor Auto-Stop
    G09077564Courtesy of MAZDA MOTORS CORP.
