Outer Mirror Garnish Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

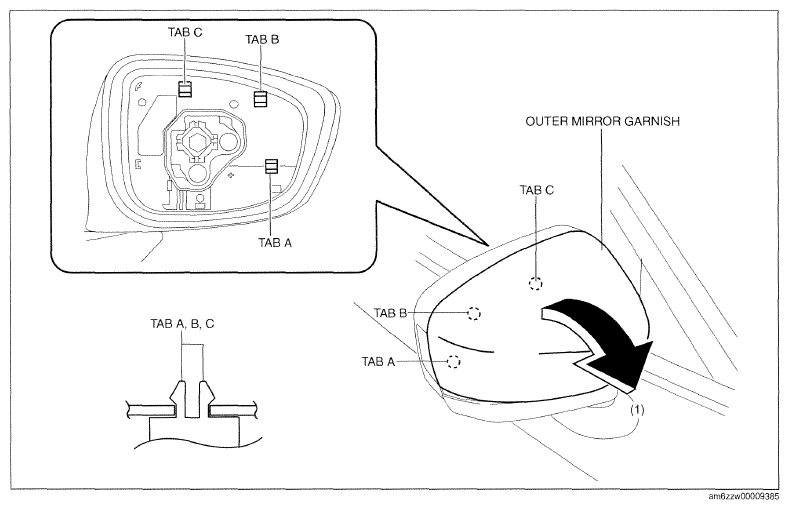

- Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish and remove tab A, B, C in the direction of arrow (1).

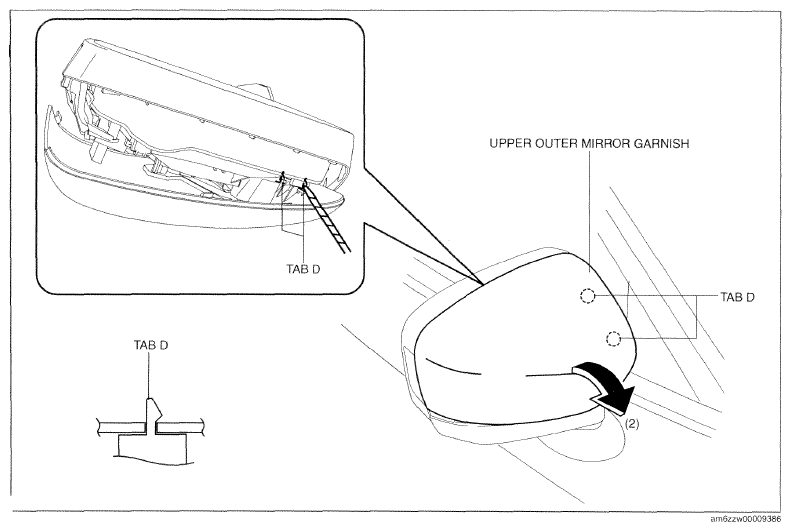

- Insert a tape-wrapped flathead screwdriver into the upper outer mirror garnish and remove tab D in the direction of arrow (2).
- Install in the reverse order of removal.
