No. 1 Engine Mount Rubber, Front Crossmember Component Removal Note

  1. Disconnect the service plug. (With i-ELOOP) (See SERVICE PLUG DISCONNECTION/CONNECTION [i-ELOOP] .)
  2. Disconnect the generator terminal B cable. (With i-ELOOP) (See GENERATOR REMOVAL/INSTALLATION [i-ELOOP] .)
  3. Remove the clips shown in the figure and set the wiring harness aside. (With i-ELOOP)

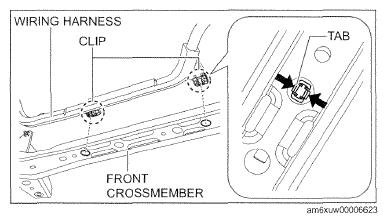

    Fig 1: Removing Wiring Harness Clips
    G09785231Courtesy of MAZDA MOTORS CORP.
  4. Loosen the No. 1 engine mount rubber installation bolt (front crossmember side) shown in the figure.

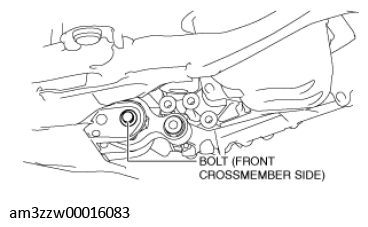

    Fig 2: Locating Engine Mount Rubber Installation Bolt (Front Crossmember Side)
    G11550060Courtesy of MAZDA MOTORS CORP.
  5. Remove the No. 1 engine mount rubber and the front crossmember component as a single unit. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
