Purge Solenoid Valve Removal/Installation: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Disconnect the high pressure fuel pump connector.
Disconnect the harness clip as shown in the figure.

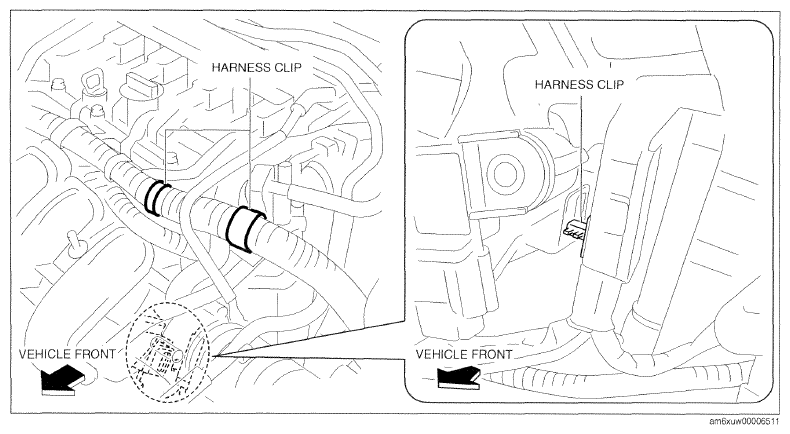

Fig 1: Locating Harness Clip
Courtesy of MAZDA

Remove in the order indicated in the table.

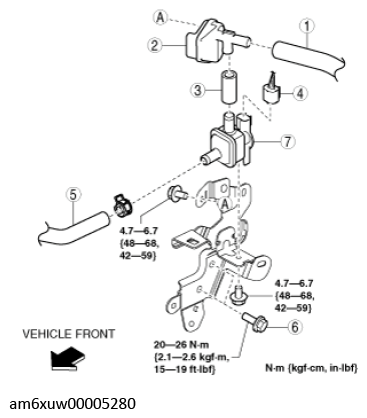

Fig 2: Locating Different Components With Torque Specification

G11546868

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	Evaporative hose No. 1 (See Evaporative Hose No. 1 Installation Note .)
2	Catch tank
3	Evaporative hose No. 2
4	Purge solenoid valve connector
5	Evaporative hose No. 3 (See Evaporative Hose No. 3 Installation Note .)
6	Purge solenoid valve bracket installation bolt
7	Purge solenoid valve (See Purge Solenoid Valve Installation Note .)

Install in the reverse order of removal.
