Engine Compartment Side

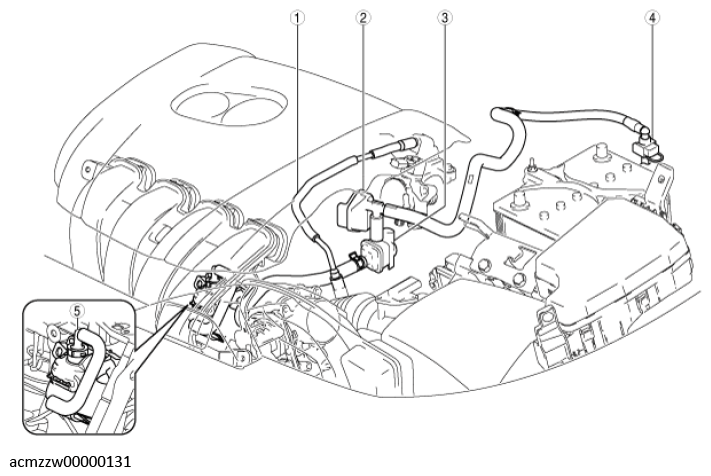

Fig 1: Locating Emission System Components On Engine Compartment Side

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	Ventilation hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
2	Catch tank (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .) (See CATCH TANK INSPECTION .)
3	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .) (See PURGE SOLENOID VALVE INSPECTION .)
4	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .)
5	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION .) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION .)
