U.S.A. And CANADA

  1. Remove the check valve. (See FUEL TANK REMOVAL/INSTALLATION .)
  2. Verify that there is airflow when positive pressure is applied to port A.

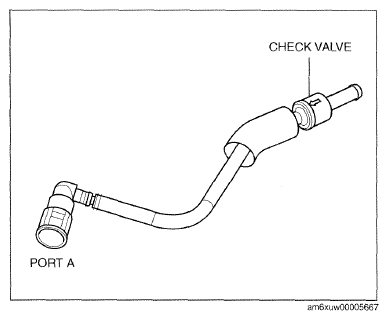

    Fig 1: Locating Check Valve Of Breather Pipe
    G09785400Courtesy of MAZDA
  3. Verify that there is airflow when negative pressure is applied to port A.
