Using instrument cluster (without center display)

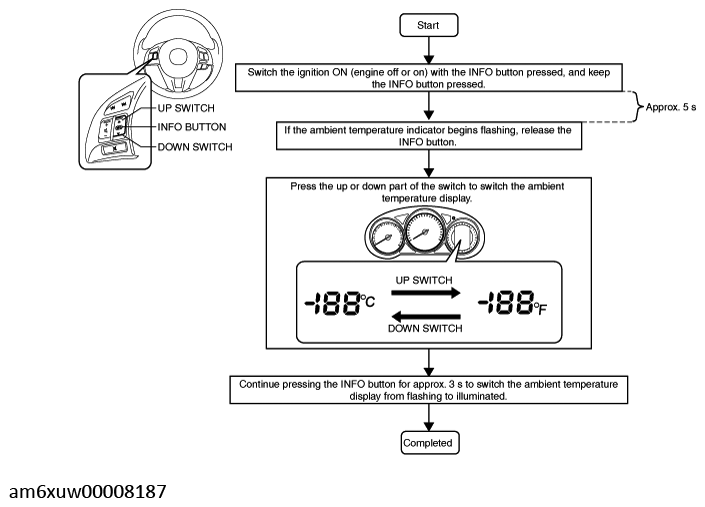

Fig 1: Instrument Cluster (Without Center Display) Procedure Flowchart

G11544458

Courtesy of MAZDA MOTORS CORP.
