SUNVISOR Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the screw.

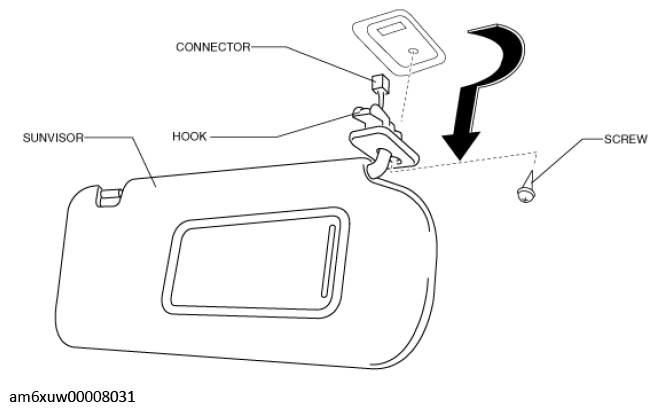

    Fig 1: Removing Sunvisor With Screw
    G11544615Courtesy of MAZDA MOTORS CORP.
  3. Remove the sunvisor in the direction of the arrow shown in the figure while detaching hook.
  4. Disconnect the vanity mirror illumination connector (with vanity mirror illumination).
  5. Press the center adaptor tabs in the direction of the arrow (1) shown in the figure using two tape-wrapped flathead screwdrivers.
    Fig 2: Pressing Center Adaptor Tabs Using Flat Head Screwdriver
    G11544616Courtesy of MAZDA MOTORS CORP.
  6. Remove the center adaptor in the direction of the arrow (2) shown in the figure.
  7. Install in the reverse order of removal.
