Inner Garnish Removal/Installation

  1. Pull the inner garnish in the direction of the arrow while detaching clips and pin.

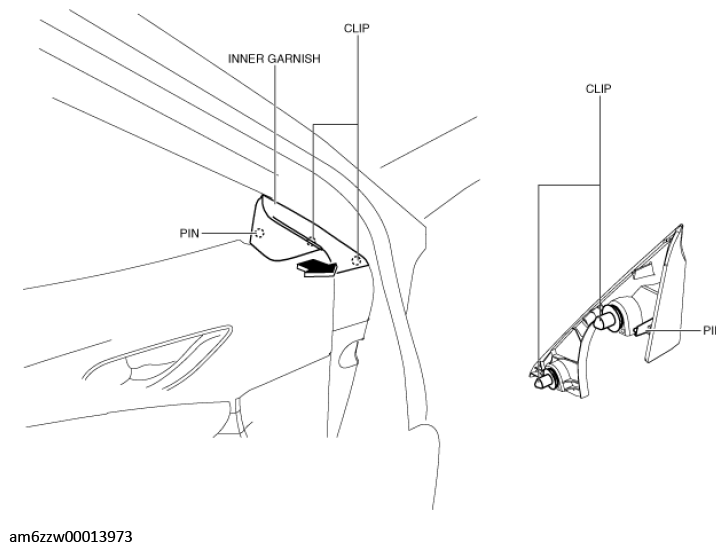

    Fig 1: Removing Inner Garnish With Clips And Pin
    G11544556Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
