AudioPilot® MICROPHONE REMOVAL/INSTALLATION

NOTE:
  • AudioPilot® is a registered trademark of Bose® Corporation.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Disconnect the connector.

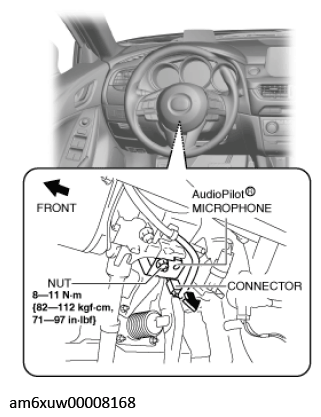

    Fig 1: Removing Audiopilot Microphone Connector
    G11544105Courtesy of MAZDA MOTORS CORP.
  3. Remove the nut.
  4. Remove the AudioPilot® microphone.
  5. Install in the reverse order of removal.
