Side Air Bag Module

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the side air bag module connector.
    Fig 1: Detaching Side Air Bag Module Connector
    G11539153Courtesy of MAZDA MOTORS CORP.

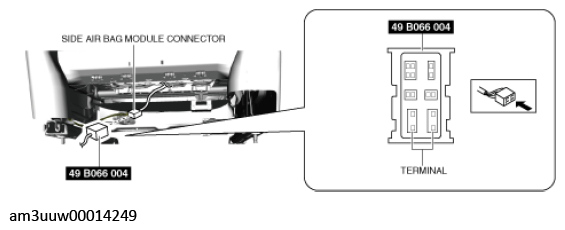

  2. Connect the side air bag module connector to either one of the SST (adapter harness) terminals shown in the figure.
    Fig 2: Connecting Side Air Bag Module Connector
    G11539154Courtesy of MAZDA MOTORS CORP.
  3. Connect the SST (Deployment tool) to the SST (Adapter harness).
    Fig 3: Connecting SST Deployment Tool And SST Adapter Harness
    G11428356Courtesy of MAZDA MOTORS CORP.
  4. Connect the SST (Deployment tool) to the battery. Connect the power supply red clip to the positive battery terminal, and the black clip to the negative battery terminal.
  5. Verify that the red lamp on the SST (Deployment tool) is illuminated.
  6. Verify that all persons are standing at least 6 m {20 ft} away from the vehicle.
  7. Press the activation switch on the SST (Deployment tool) to operate (deploy) the side air bag module.
    Fig 4: SST Deployment Tool Activation Switch
    G11428349Courtesy of MAZDA MOTORS CORP.
    WARNING:
    • The air bag module is very hot immediately after it is operated (deployed). You can be burned. Do not touch the air bag module for at least 15 min after deployment.
  8. Disconnect the SST (Deployment tool) from the SST (Adapter harness).
