Wheel Hub Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply grease (L2Y1 33247) to the wheel bearing inner race and drive shaft contact surface (Area A in figure).

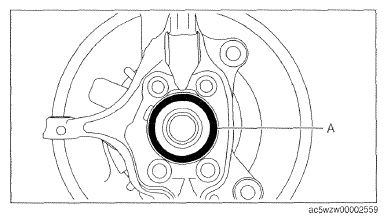

Fig 1: Identifying Grease Applying Area On Wheel Bearing Inner Race And Drive Shaft Contact
Courtesy of MAZDA MOTORS CORP.
