Dashboard Removal/Installation: Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the plate nuts by hand in the direction of the arrow shown in the figure until they are seated.
    CAUTION:
    • After removing the dashboard, the plate nuts of the member junctions will have lifted. If the dashboard is removed with the plate nuts lifted, the plate nuts may contact the vehicle body, causing a dent or damage to the coating film, and the dashboard installation will be difficult. Before inserting the dashboard into the cabin, adjust the plate nuts of the member junctions.
    • If the plate nuts are tightened completely when installing bolts E and F, the plate nuts may not move resulting in damage to the member junction tab and the vehicle body. After seating the plate nuts, verify that they can be rotated by hand.
    NOTE:
    • If the plate nuts cannot be rotated by hand, loosen the plate nuts using a hexagonal wrench.
    Fig 1: Rotating Plate Nuts By Hand
    G09787937Courtesy of MAZDA MOTORS CORP.
  2. Insert the dashboard from the front driver-side door or front passenger-side door opening.
    CAUTION:
    • If the member junction tabs become disengaged from the dashboard when inserting the dashboard into the cabin, the member junction could be damaged. Before inserting the dashboard, into the cabin, verify that the member junction tabs are engaged with the dashboard.

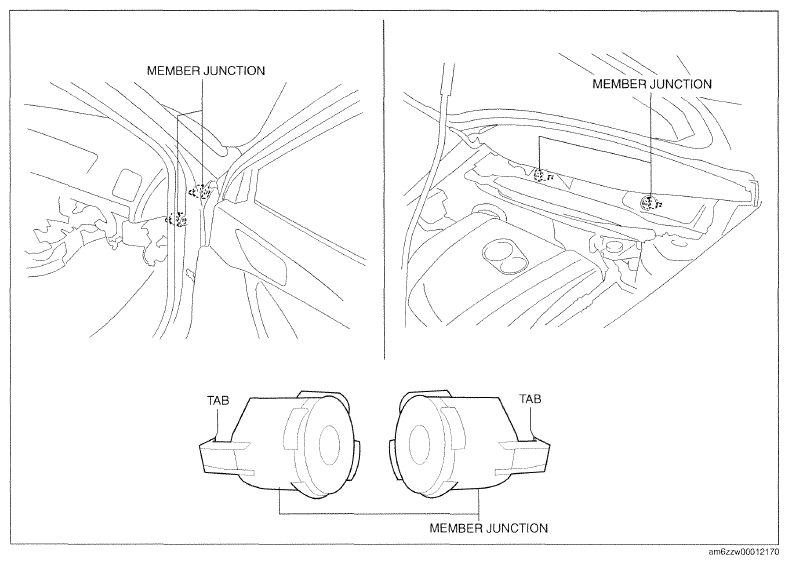

    Fig 2: Identifying Member Junction Tabs
    G09787938Courtesy of MAZDA MOTORS CORP.
  3. Move the dashboard in the direction of the arrow shown in the figure, align it with the guide pins on the vehicle body sides, and set it.

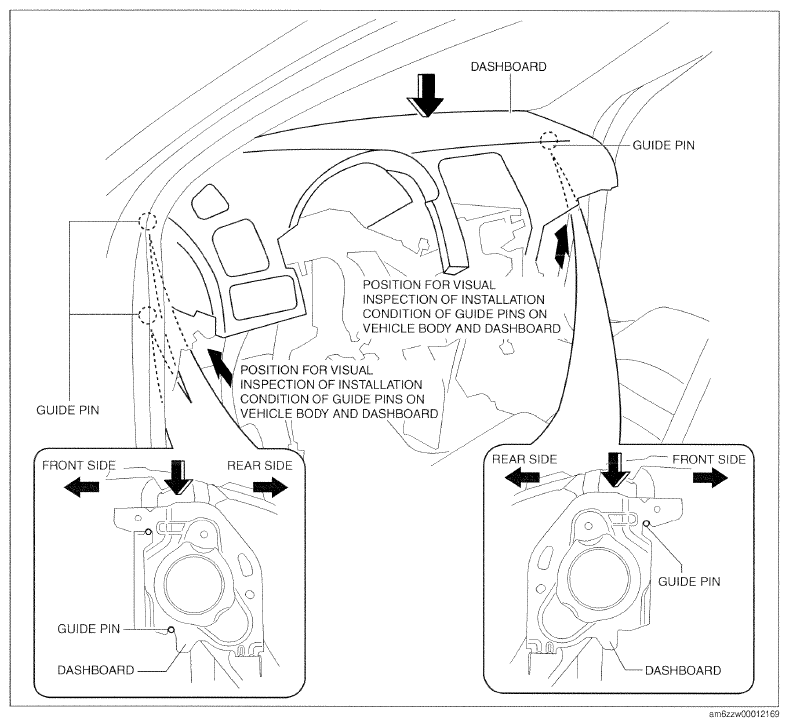

    Fig 3: Aligning Dashboard With Guide Pins On Vehicle Body Sides
    G09787939Courtesy of MAZDA MOTORS CORP.
  4. Insert bolts E and F on the passenger-side.
    NOTE:
    • Tighten bolts E and F to the specified toque after the member junction position of bolts D is positioned.

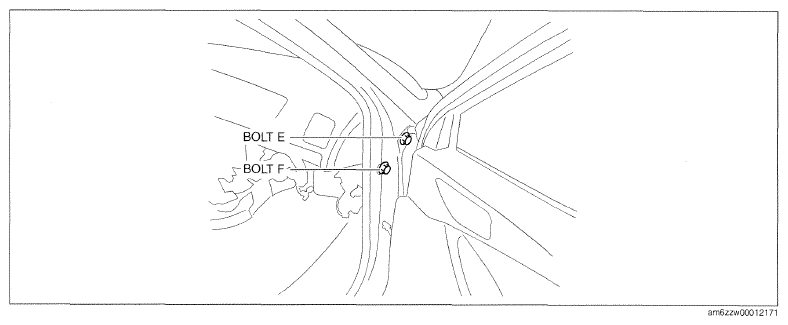

    Fig 4: Identifying Bolts E And F Passenger-Side
    G09787940Courtesy of MAZDA MOTORS CORP.
  5. Tighten bolts E and F on the driver-side until they are seated.
    NOTE:
    • Do not use a tool to tighten bolts E and F, and instead hand tighten them until they feel sufficiently tight.

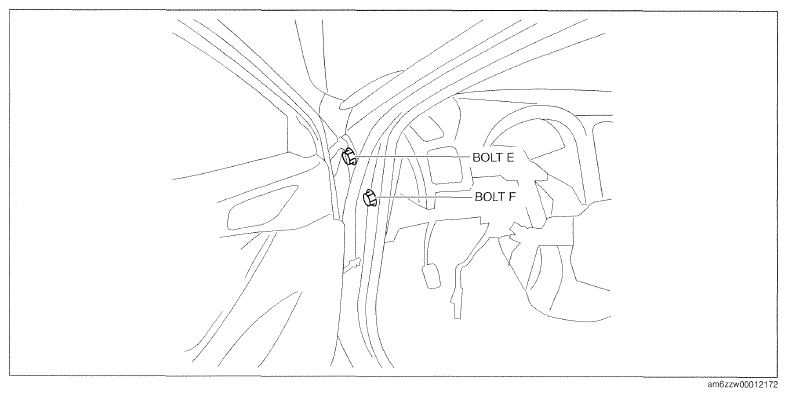

    Fig 5: Identifying Bolts E And F Passenger-Side
    G09787941Courtesy of MAZDA MOTORS CORP.
  6. Tighten bolts E and F on the passenger-side until they are seated.
    NOTE:
    • After bolts E and F are seated, rotate the plate nuts of the member junctions and visually inspect them from the lower side of the dashboard on the passenger-side to verify that they emerge in the direction of the body panels.

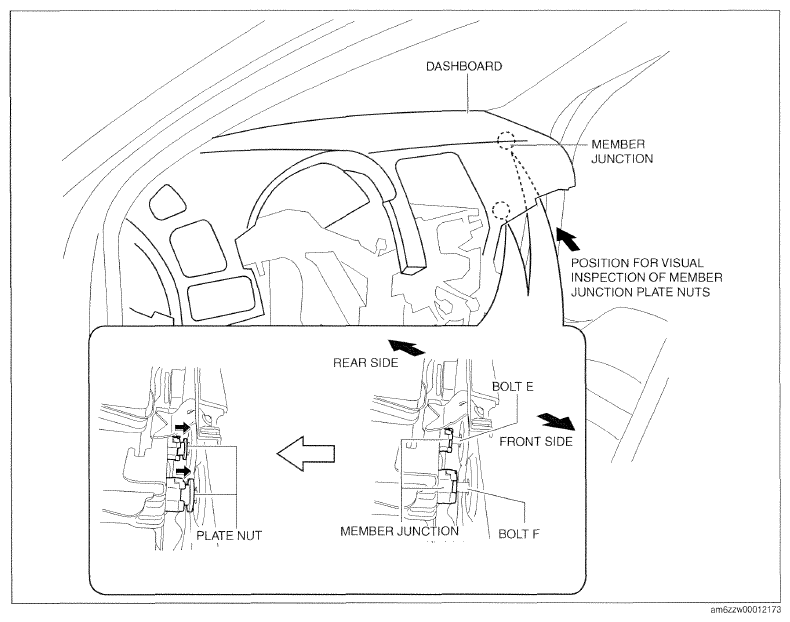

    Fig 6: Identifying Bolts E And F On Passenger-Side
    G09787942Courtesy of MAZDA MOTORS CORP.
  7. Verify that the member junction hole of bolt D and the through-hole of bolt D on the vehicle side are aligned.
    NOTE:
    • If the member junction hole of bolt D is not aligned with the through-hole of bolt D on the vehicle side, remove bolts E and F on the driver-side and the front passenger-side, then resume the procedure from Step  5.

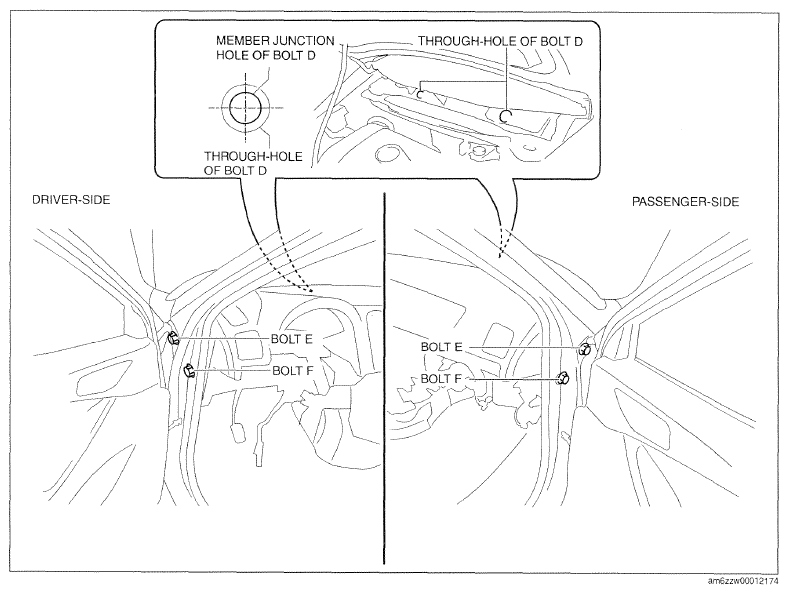

    Fig 7: Identifying Member Junction Hole Of Bolt D
    G09787943Courtesy of MAZDA MOTORS CORP.
  8. Seated bolts D.
    CAUTION:
    • If bolts D are reused, the plate nuts of the member junctions may not move causing damage to the member junction tabs and the vehicle body. Always replace bolts D with new ones.

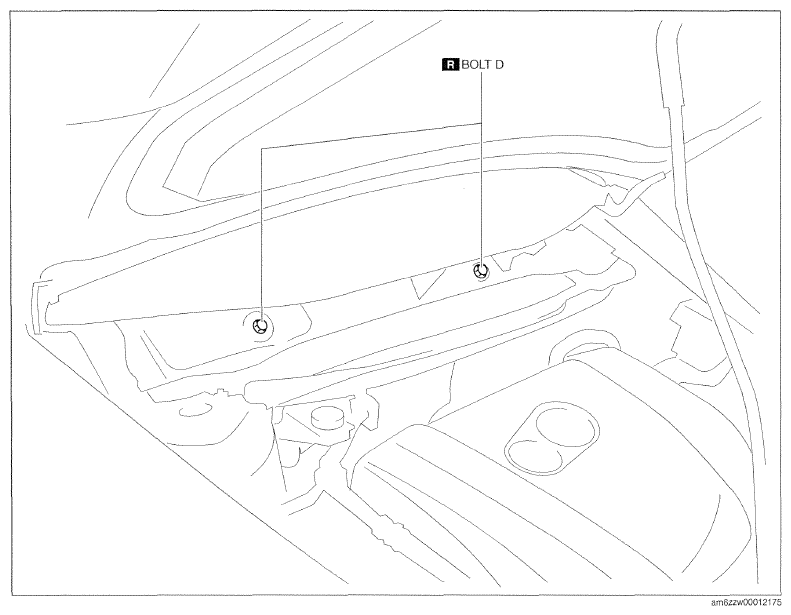

    Fig 8: Identifying Seated Bolts D
    G09787944Courtesy of MAZDA MOTORS CORP.
  9. Completely tighten bolts E and F on the driver-side and passenger-side to the specified torque.

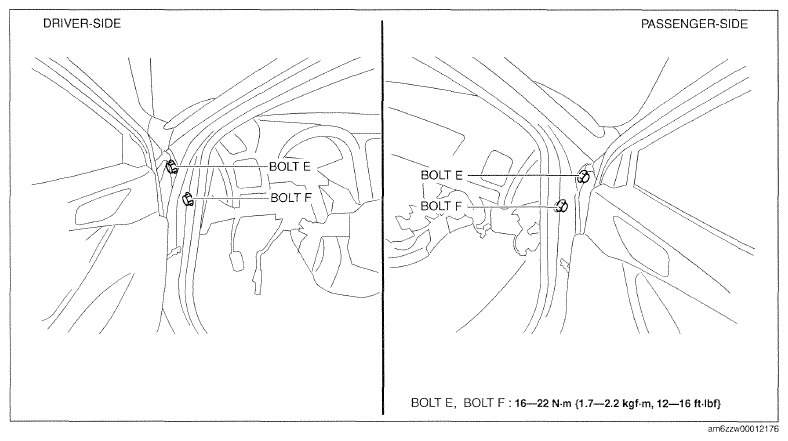

    Fig 9: Bolts E And F On Driver-Side And Passenger-Side With Torque Specifications
    G09787945Courtesy of MAZDA MOTORS CORP.
  10. Completely tighten bolts D to the specified torque.

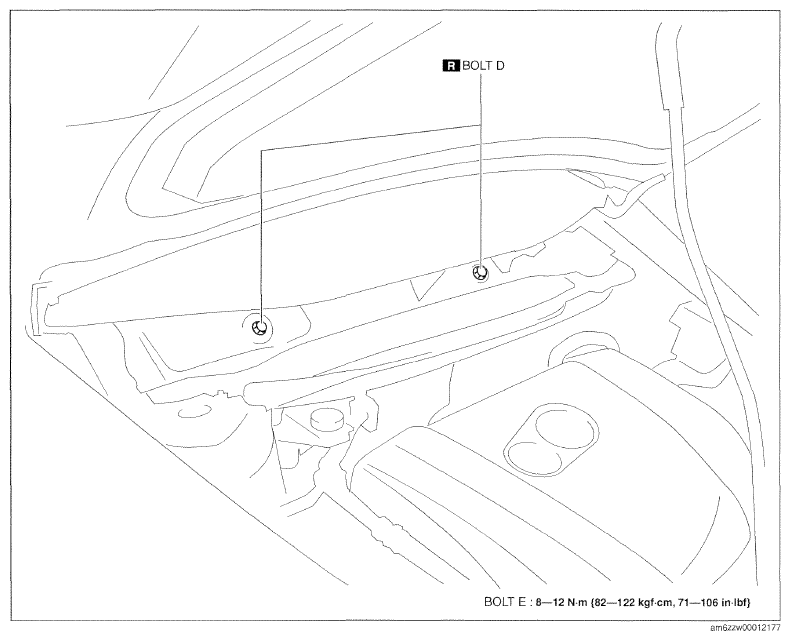

    Fig 10: Bolts D With Torque Specifications
    G09787946Courtesy of MAZDA MOTORS CORP.
  11. Install the caps.

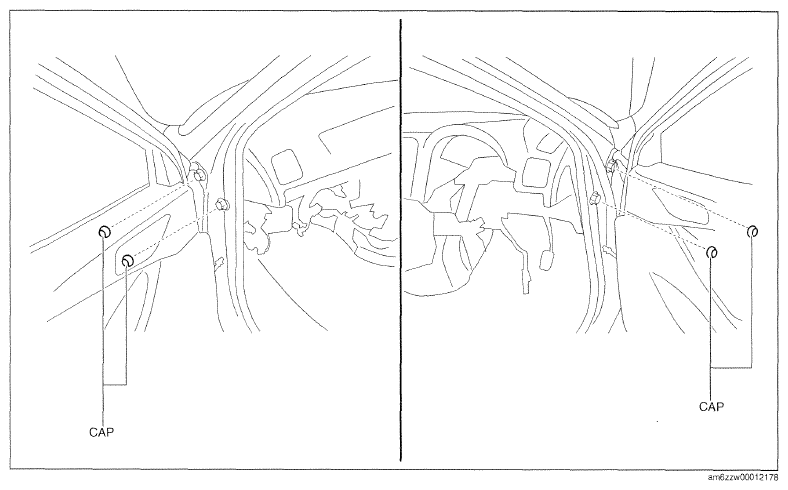

    Fig 11: Identifying Dashboard Bracket Mounting Bolts
    G09787947Courtesy of MAZDA MOTORS CORP.
  12. Install the dashboard bracket.
  13. Install nuts C.
  14. Install bolts B.

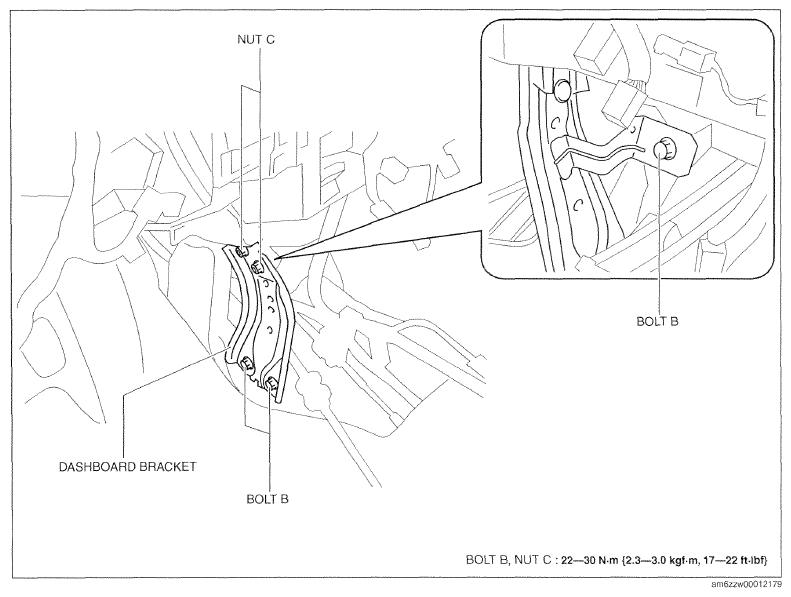

    Fig 12: Dashboard Bracket Bolts With Torque Specifications
    G09787948Courtesy of MAZDA MOTORS CORP.
  15. Connect the dashboard harness connectors at the tunnel area and install the wiring harness clip.
  16. Connect the A/C unit connector.
  17. Install the rear console bracket.
  18. Install nuts A.

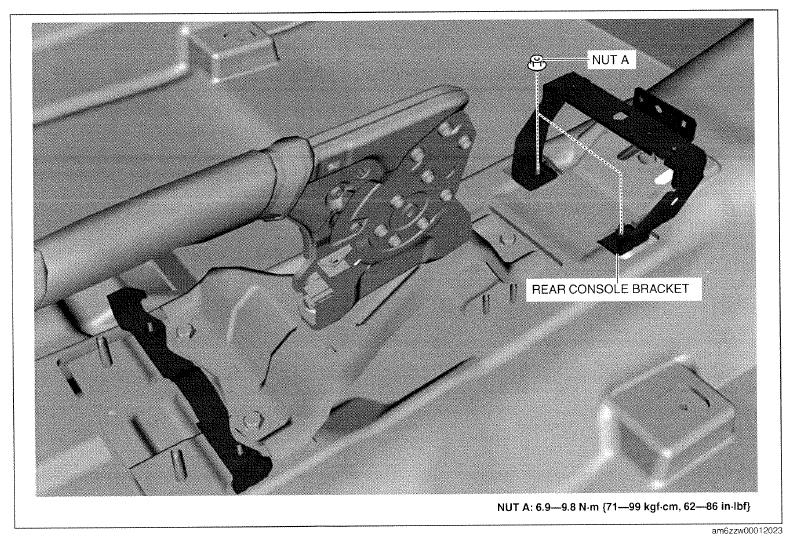

    Fig 13: Rear Console Bracket Nut With Torque Specifications
    G09787949Courtesy of MAZDA MOTORS CORP.
  19. Install the following parts:
    1. Parking brake lever (See PARKING BRAKE LEVER REMOVAL/INSTALLATION .)
    2. Selector lever component (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift lever component (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    4. Steering shaft (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    5. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    6. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    7. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
    8. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    9. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    10. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    11. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    12. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    14. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    15. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
    16. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    17. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    18. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    19. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    20. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    21. Audio unit (See AUDIO UNIT REMOVAL/INSTALLATION .)
    22. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)
    23. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    24. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    25. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
    26. Column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    27. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    28. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    29. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    30. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    31. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    32. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    33. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  20. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
