Vehicle Exterior

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Remove the trunk lid garnish. (See TRUNK LID GARNISH REMOVAL/INSTALLATION .)
  4. Disconnect the connector.

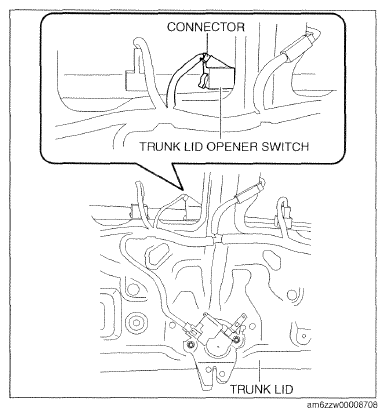

    Fig 1: Identifying Trunk Lid Opener Switch
    G09787788Courtesy of MAZDA MOTORS CORP.
  5. While pressing the trunk lid opener switch tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the trunk lid opener switch tab from the trunk lid.
  6. Remove the trunk lid opener switch from the trunk lid.
  7. Install in the reverse order of removal.

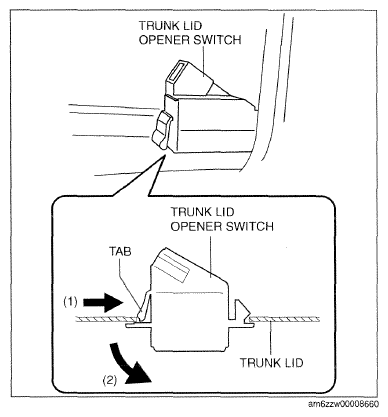

    Fig 2: Pressing Trunk Lid Opener Switch Tab
    G09787789Courtesy of MAZDA MOTORS CORP.
