Driver's Door/Passenger's Door

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    5. Front door key cylinder (driver's side) (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION .)
    6. Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION .)
  4. Verify that the continuity is as indicated in the table.

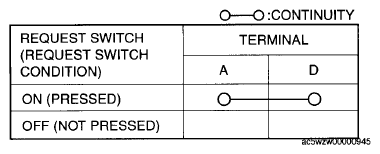

    Fig 1: Request Switch Continuity Reference Chart
    G09077072Courtesy of MAZDA MOTORS CORP.
    Fig 2: Inspecting Request Switch
    G09077073Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the front outer handle.
