DTC B108C 24: Push Button Start Switch 2 Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

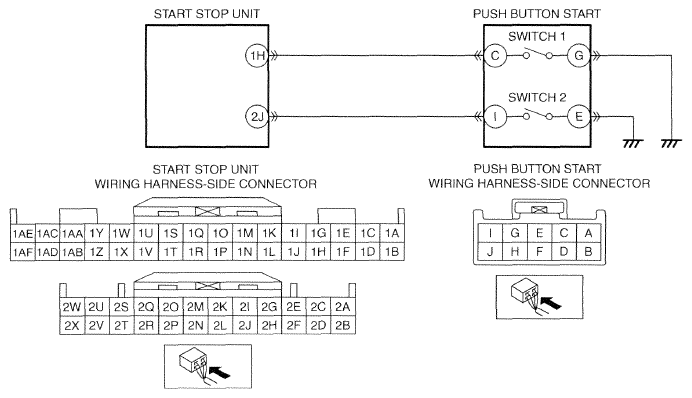

DTC B108C:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Push button start switch 2 circuit malfunction |
| Detection condition |
- Start stop unit detects that the push button start switch 2 is kept in an off condition 5 times or more
even though the push button start switch 1 is on.
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Push button start connector or terminal malfunction
- Open circuit in wiring harness between push button start terminal E and body ground
- Start stop unit connector or terminal malfunction
- Open circuit in wiring harness between start stop unit terminal 2J and push button start terminal
- Push button start switch 2 malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
