DTC B108B 24: Push Button Start Switch 1 Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

DTC B108B:24 (START STOP UNIT) DETECTION CONDITION AND POSSIBLE CAUSES

Description	Push button start switch 1 circuit malfunction
Detection condition	Start stop unit detects that the push button start switch 1 is kept in an off condition 5 times or more even though the push button start switch 2 is on.
Fail-safe function	Not applicable

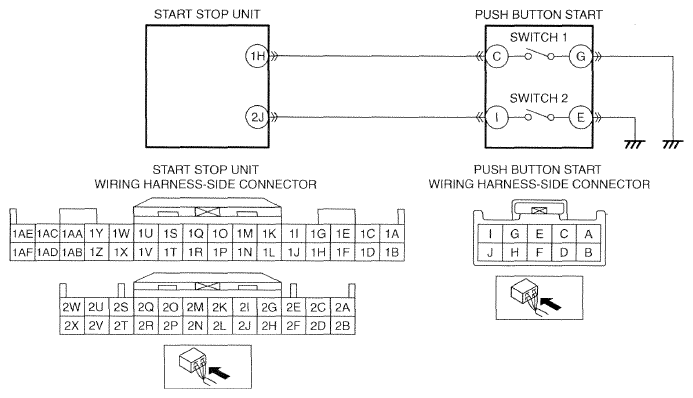

Possible cause	Push button start connector or terminal malfunction Open circuit in wiring harness between push button start terminal G and body ground Start stop unit connector or terminal malfunction Open circuit in wiring harness between start stop unit terminal 1H and push button start terminal C Push button start switch 1 malfunction Start stop unit malfunction
Courtesy of MAZDA MOTORS CORP.
