Manual Transaxle Oil Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Park the vehicle on level ground.
Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove the oil level plug and gasket.
Verify that the manual transaxle oil is near the brim of the plug port.
- When the oil level is lower than the lower limit add manual transaxle oil.
Manual transaxle oil grade

API service GL-4

Manual transaxle oil viscosity

SAE 75W-80
Install a new gasket and the oil level plug.

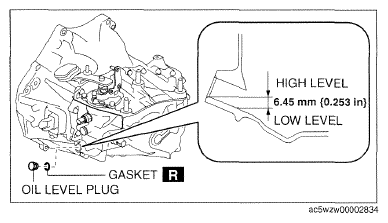

Fig 1: Identifying High And Low Level Of Manual Transaxle Oil
Courtesy of MAZDA MOTORS CORP.

Tightening torque

39-59 N.m {4.0-6.0 kgf.m, 29-43 ft.lbf}
Install the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
