Accessory Socket

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

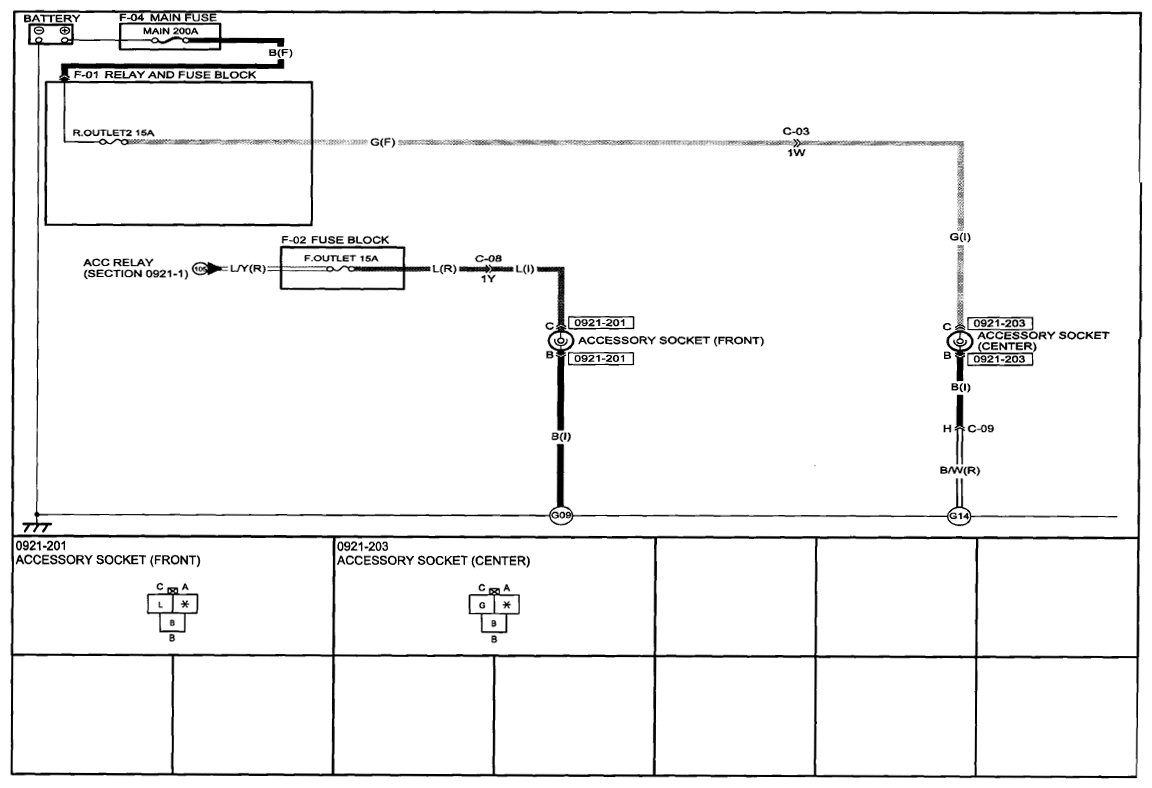

Fig 1: Accessory Socket Communication Diagram (0921-2)

Courtesy of MAZDA MOTORS CORP.

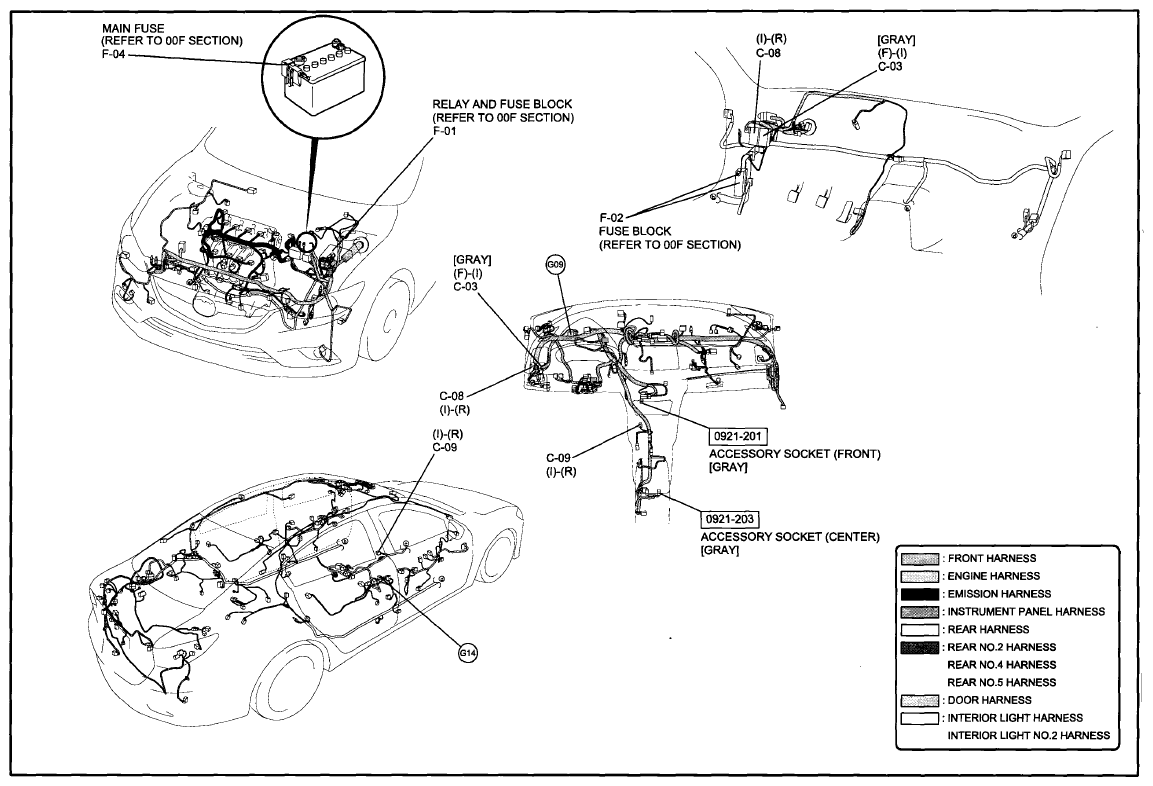

Fig 2: Accessory Socket Wiring Harness Connectors (0921-2)

Courtesy of MAZDA MOTORS CORP.
