Steering Angle Sensor

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

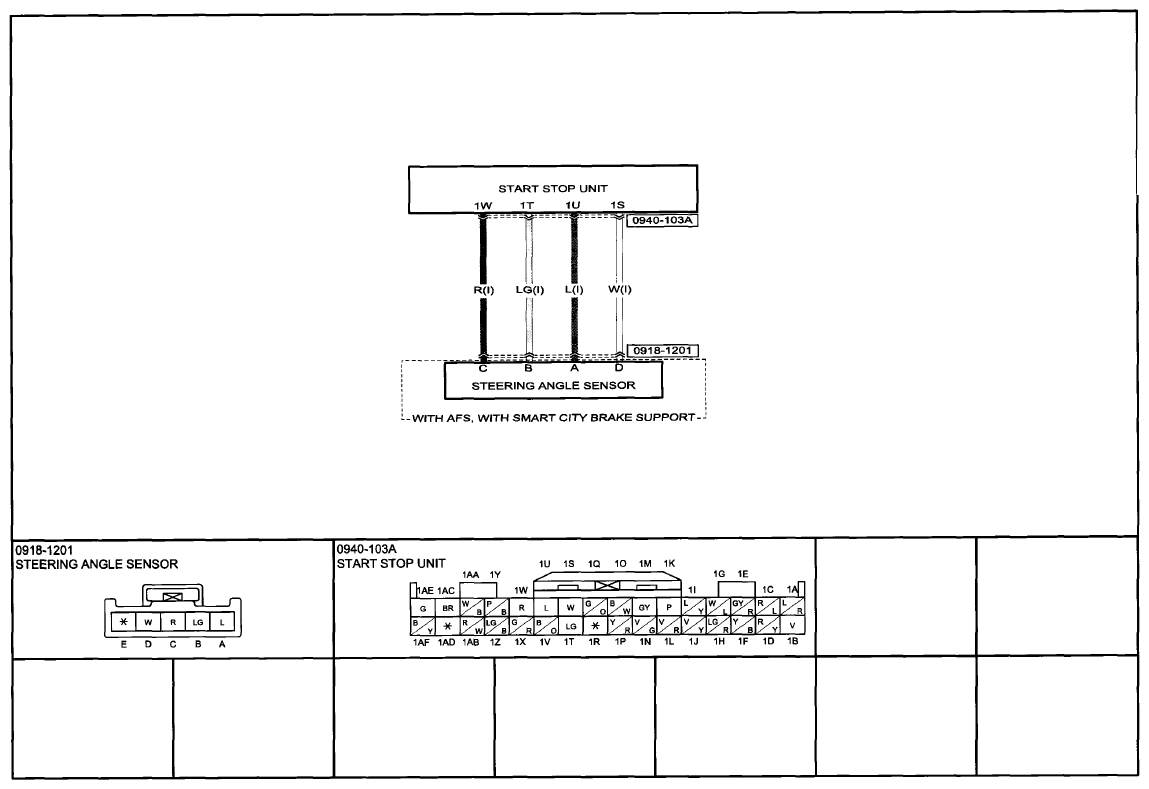

Fig 1: Steering Angle Sensor Communication Diagram (0918-12)

Courtesy of MAZDA MOTORS CORP.

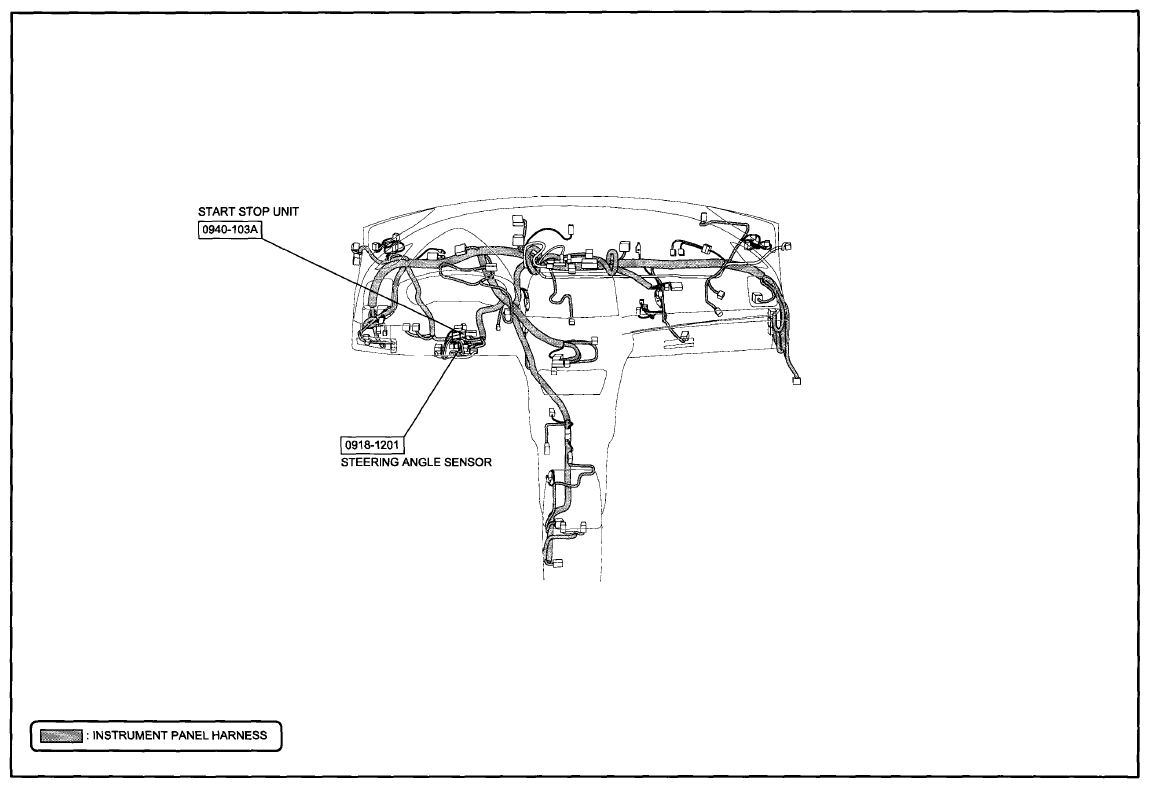

Fig 2: Steering Angle Sensor Wiring Harness Connectors (0918-12)

Courtesy of MAZDA MOTORS CORP.
