Audio System

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

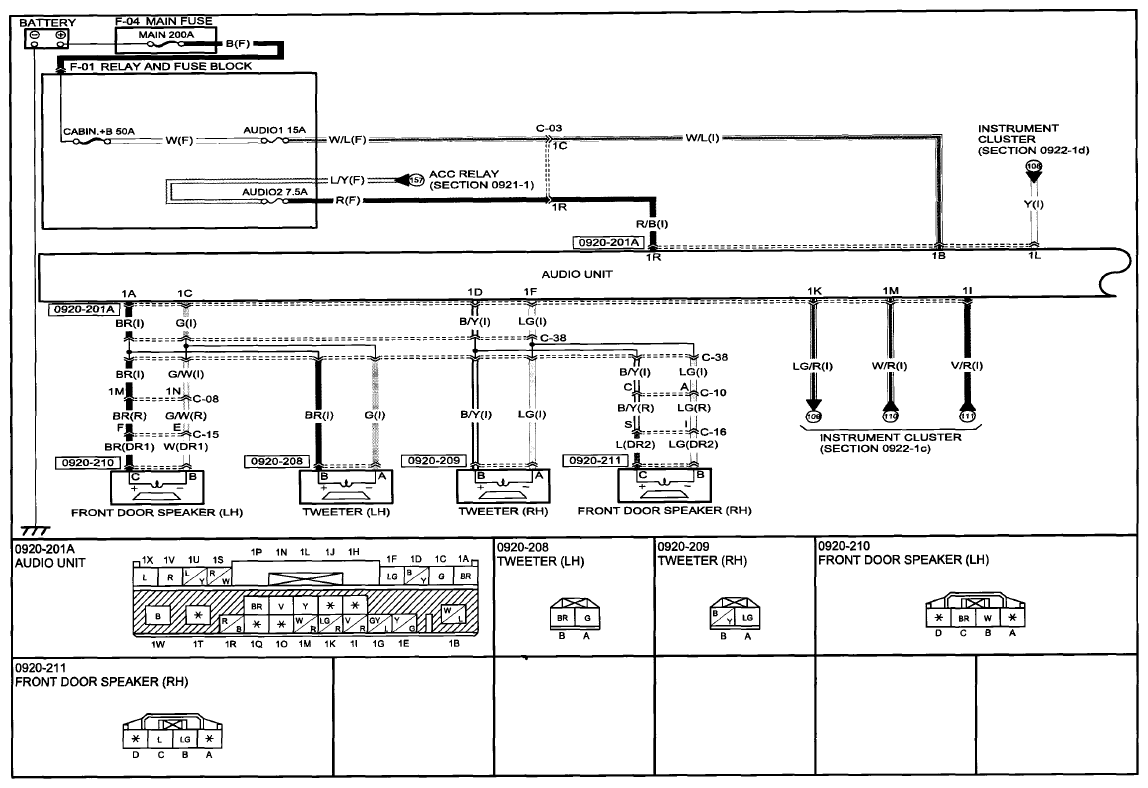

Fig 1: Audio System Communication Diagram (0920-2A)

Courtesy of MAZDA MOTORS CORP.

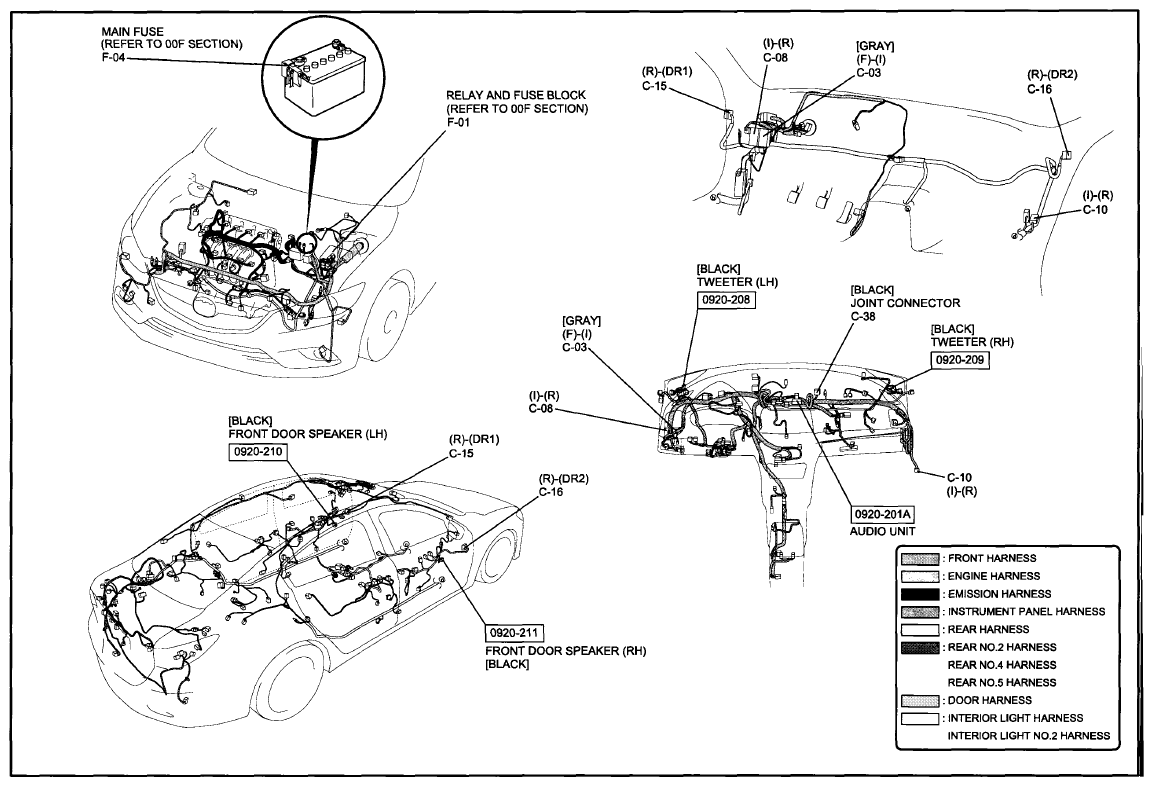

Fig 2: Audio System Wiring Harness Connectors (0920-2A)

Courtesy of MAZDA MOTORS CORP.

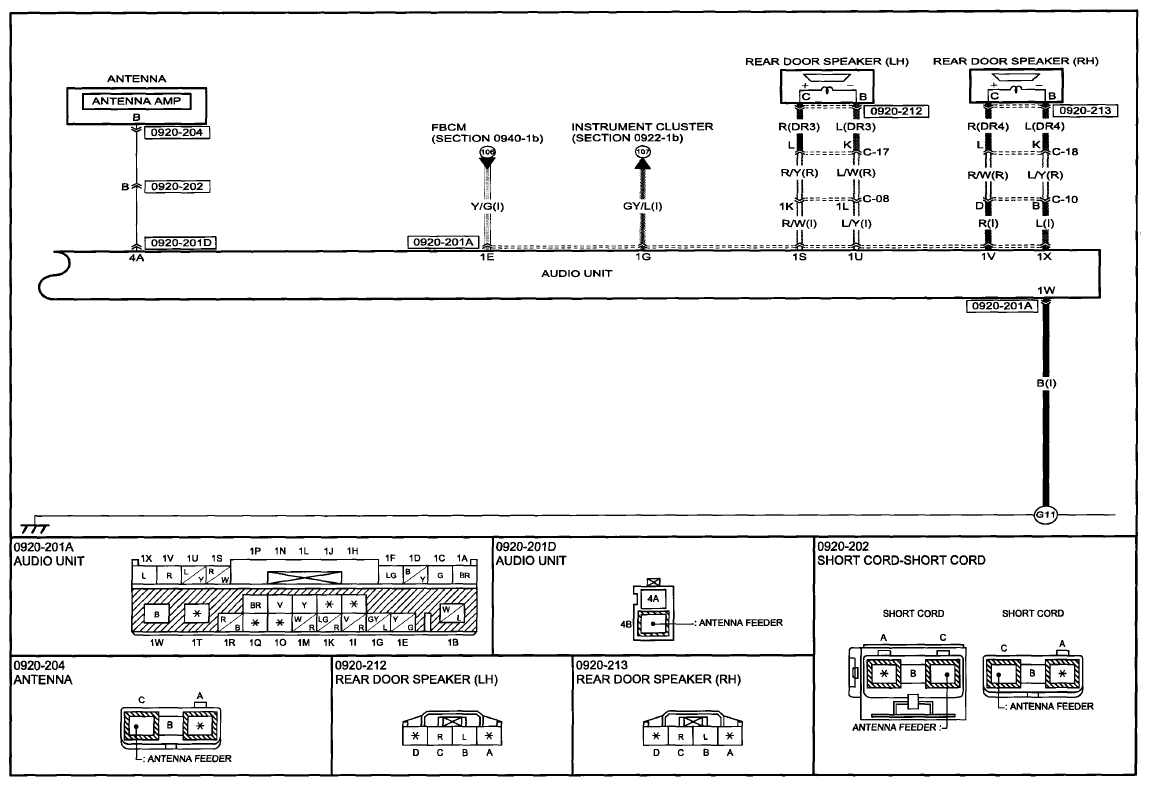

Fig 3: Audio System Communication Diagram (0920-2B)

Courtesy of MAZDA MOTORS CORP.

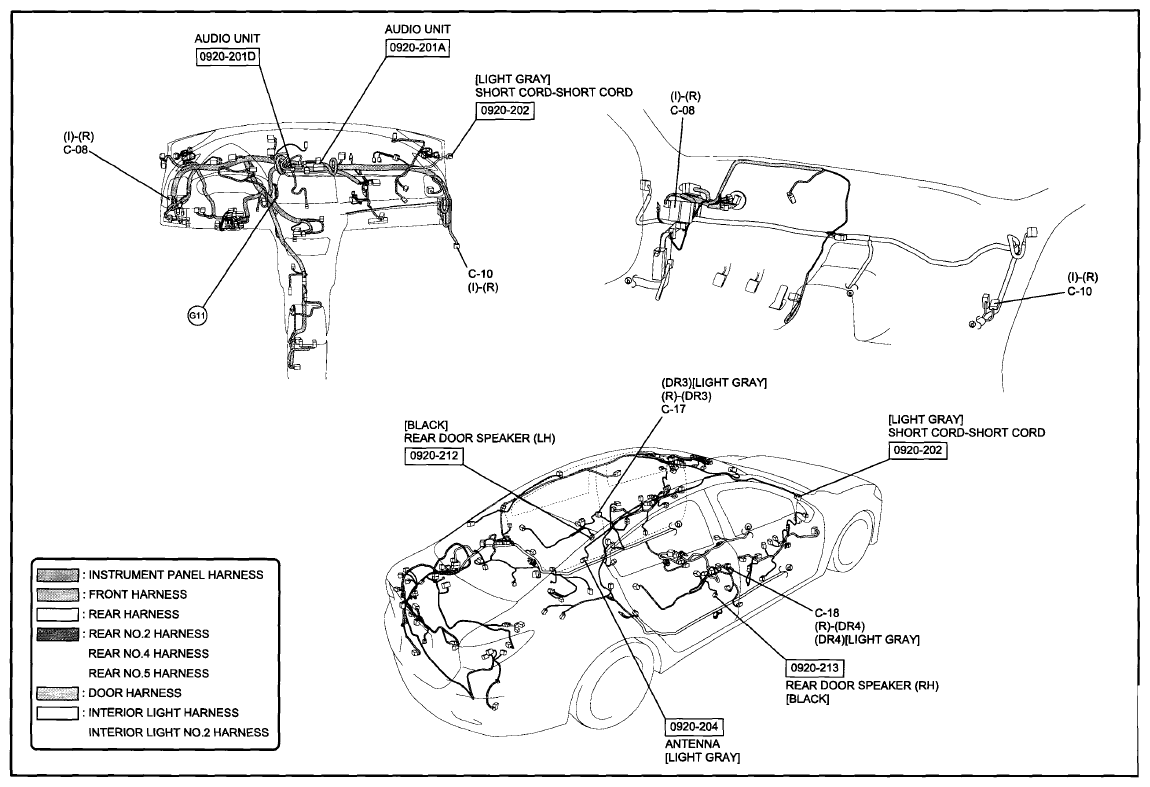

Fig 4: Audio System Wiring Harness Connectors (0920-2B)

Courtesy of MAZDA MOTORS CORP.

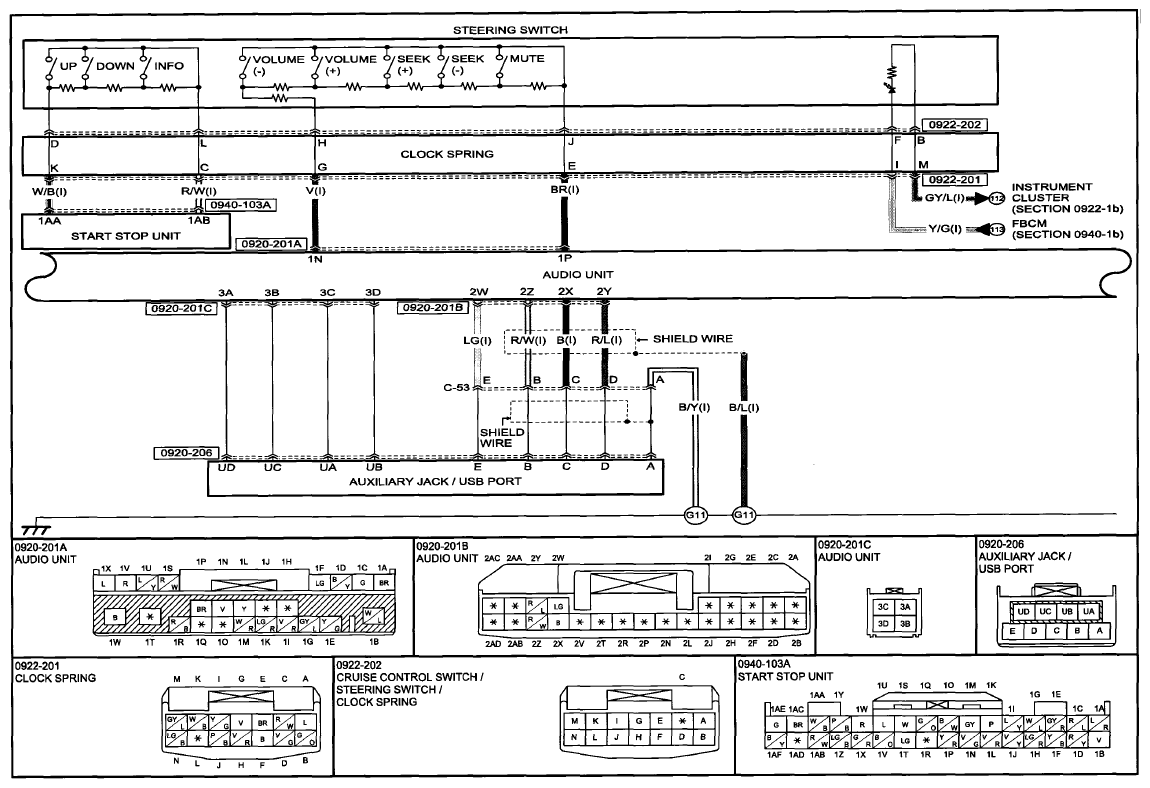

Fig 5: Audio System Communication Diagram (0920-2C)

Courtesy of MAZDA MOTORS CORP.

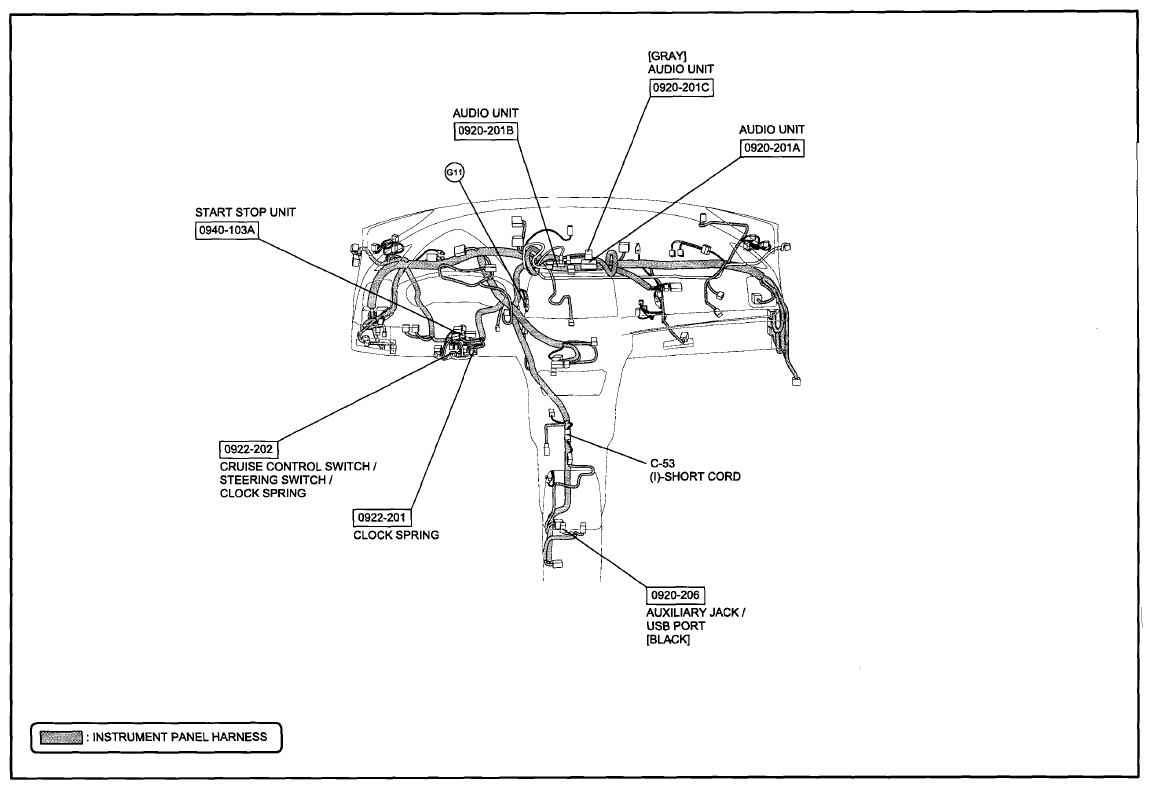

Fig 6: Audio System Wiring Harness Connectors (0920-2C)

Courtesy of MAZDA MOTORS CORP.
