Ambient Temperature Sensor Removal/Installation (Manual A/C)
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)

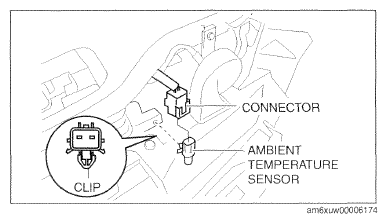

- Disconnect the connector.
- Remove the ambient temperature sensor.
- Install in the reverse order of removal.
