No. 3 Engine Mount Removal Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips shown in the figure and set the ground cable aside.
    Fig 1: Identifying Ground Cable And Mounting Clip
    G09785088Courtesy of MAZDA MOTORS CORP.
  2. Install the SST  using part number 99794 1025  or an M10 x 1.25  , length 25 mm (0.98 in}  bolt as shown in the figure.
    CAUTION:
    • Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.
    Fig 2: Installing SST
    G09785089Courtesy of MAZDA MOTORS CORP.

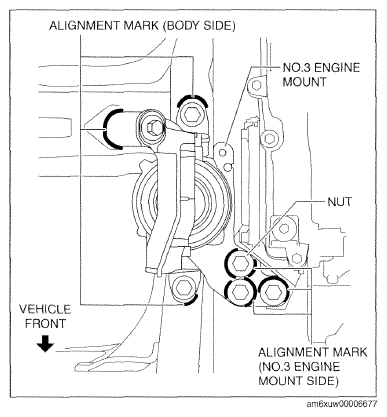

  3. Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.
    NOTE:
    • Paint so that the No. 3 engine mount is framed on the body side and the outline of the nut is framed on the No. 3 engine mount side.
  4. Install the SST  using the following procedures.
    CAUTION:
    • Refer to the SST instruction manual for the basic handing procedure.
    Fig 3: Installing SST
    G09785090Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Install front foot No. 2 to the left and right front shafts of the SST  .
    Fig 4: Installing Front Foot No. 2 To Left And Right Front Shafts Of SST
    G09785091Courtesy of MAZDA MOTORS CORP.

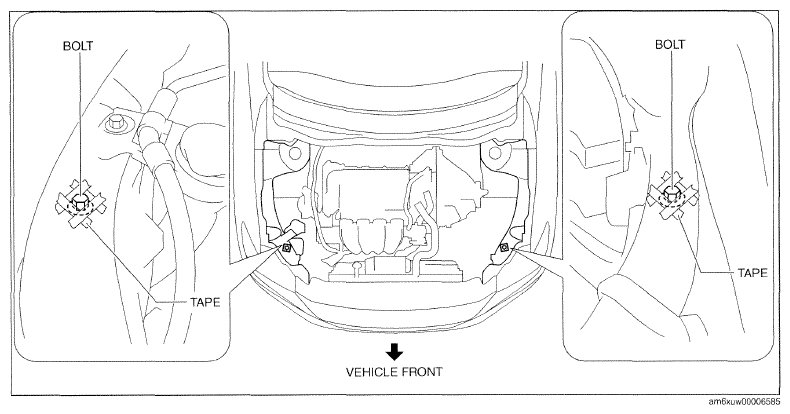

    1. Protect the positions shown in the figure using tape.
      Fig 5: Identifying Tape Applying Area
      G09785092Courtesy of MAZDA MOTORS CORP.

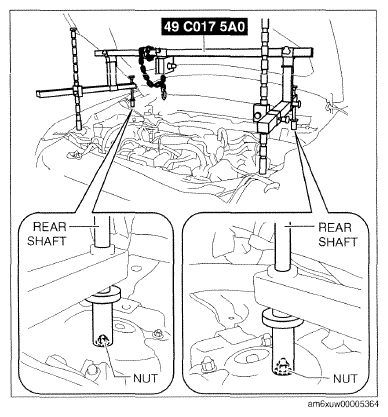

    2. As shown in the figure, set the rear shafts of the SST  to the left and right shock absorber nuts.
      Fig 6: Installing Rear Shafts Of SST To Left And Right Shock Absorber Nuts
      G09785093Courtesy of MAZDA MOTORS CORP.

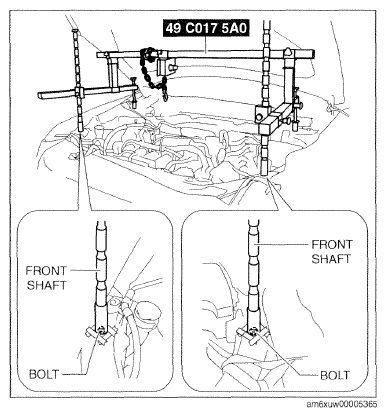

    3. As shown in the figure, set the front shafts of the SST to the left and right bolts.
      Fig 7: Installing Front Shafts Of SST To Left And Right Bolts
      G09785094Courtesy of MAZDA MOTORS CORP.
    4. Adjust the height of the left and right side bars of the SST  so that they are leveled, then tighten each part.
    5. Apply tension to the chain to hold the engine.
  5. Remove the No. 3 engine mount.

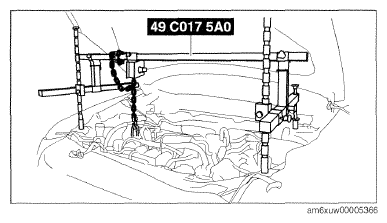

    Fig 8: Removing No. 3 Engine Mount
    G09785095Courtesy of MAZDA MOTORS CORP.
