Trunk Lid Recess Removal/Installation

  1. While pressing the trunk lid recess in the direction of arrows (1) shown in the figure, move the trunk lid recess in the direction of arrow (2), and detach the trunk lid recess tab from the trunk lid.

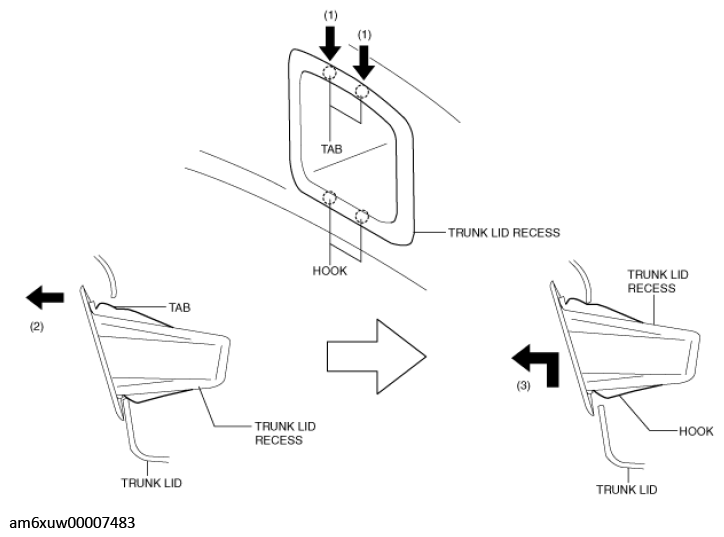

    Fig 1: Detaching Trunk Lid Recess Tab From Trunk Lid
    G11544623Courtesy of MAZDA MOTORS CORP.
  2. Remove the trunk lid recess in the direction of the arrow (3) shown in the figure avoiding hooks.
  3. Install in the reverse order of removal.
