Front Door Trim Disassembly/Assembly: Driver-side

  1. Disassemble in the order shown in the figure.

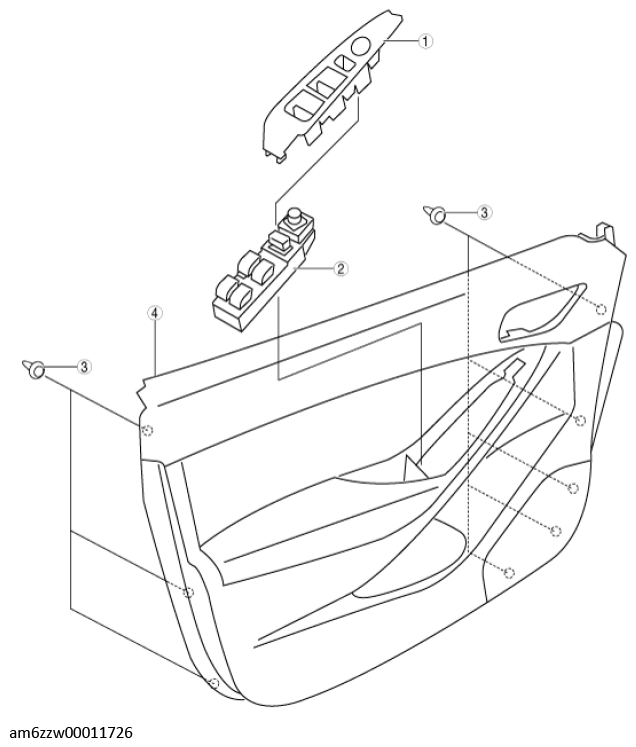

    Fig 1: Exploded View Of Front Door Trim Components (Driver-Side)
    G11544538Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Switch panel cover
    2 Power window main switch
    (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .)
    3 Fastener
    4 Front door trim
  2. Assemble in the reverse order of disassembly.
