Liftgate Upper Trim Removal/Installation

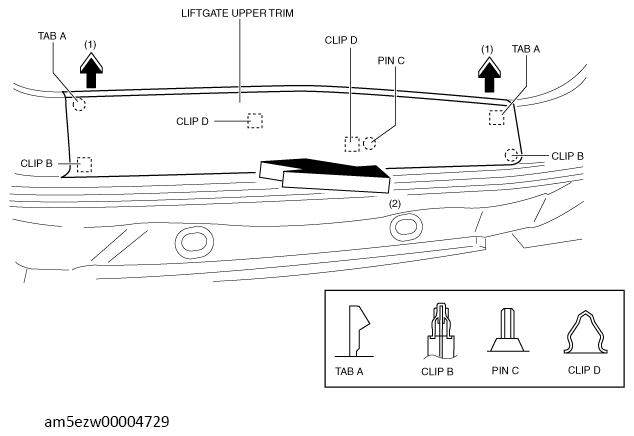

  1. Detach tabs A while pulling the liftgate upper trim in the direction of the arrow (1) shown in the figure, then detach clips B, pin C, and clips D while pulling in the direction of the arrow (2).
    G13728387Courtesy of MAZDA MOTORS CORP.
  2. Remove the liftgate upper trim.
  3. Install in the reverse order of removal.
