Clearance Inspection

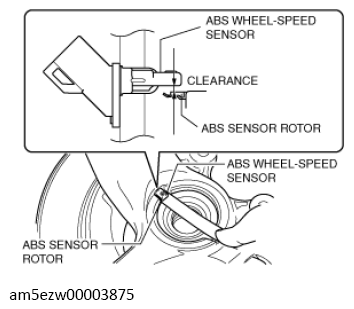

1. Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.

Courtesy of MAZDA MOTORS CORP.

• If not within the specification, verify the following items and repair or replace if necessary.

• Is there deformation or damage to the ABS sensor rotor?
• Is there deformation or damage to the ABS wheel speed sensor?
• Is there foreign material adhering?

Clearance

2.1 mm {0.083 in} or less
