Discharge Headlight Control Module Removal/Installation

CAUTION:
  • Incorrect servicing of the discharge headlight control module could result in electrical shock. Read the service warnings before handling the discharge headlight control module. (See DISCHARGE HEADLIGHT SERVICE WARNINGS .)
  1. Disconnect the negative battery cable.
  2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
  3. Remove the front combination lights. (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)

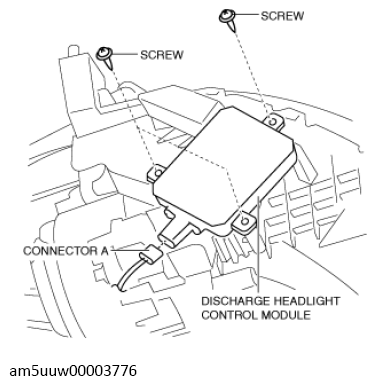

  4. Remove the screws.
    G13728438Courtesy of MAZDA MOTORS CORP.

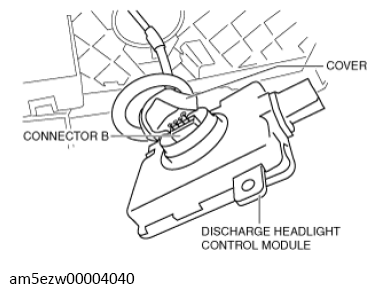

  5. Disconnect connector A.
  6. Set aside the cover and disconnect connector B.
    G13728439Courtesy of MAZDA MOTORS CORP.
  7. Remove the discharge headlight control module.

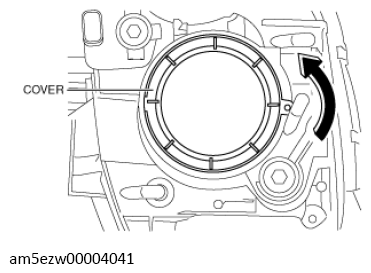

  8. Rotate the cover in the direction of the arrow shown in the figure to remove it.
    G13728440Courtesy of MAZDA MOTORS CORP.

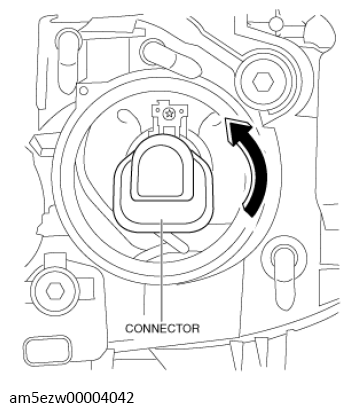

  9. Rotate the connector in the direction of the arrow shown in the figure to remove it.
    G13728441Courtesy of MAZDA MOTORS CORP.

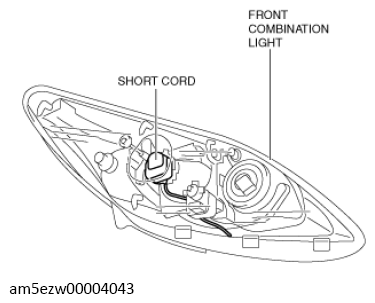

  10. Remove the short cord.
    G13728442Courtesy of MAZDA MOTORS CORP.
  11. Install in the reverse order of removal.
