Connector Removal Note

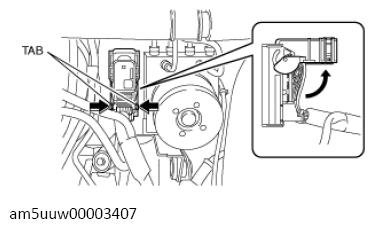

  1. Pull the connector cover up in the direction of the arrow while pressing the tab of the connector cover.
    G13727242Courtesy of MAZDA MOTORS CORP.
  2. Pull the connector toward the vehicle front and remove it.
