TCM Removal/Installation

CAUTION:
  • Do not impact or touch the projection on the back of the TCM. Otherwise, the TCM may not operate normally.
  • Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Disconnect the negative battery cable.
  3. Remove the battery. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  4. Remove the battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  5. Remove in the order shown in the figure.
  6. Install in the reverse order of removal.

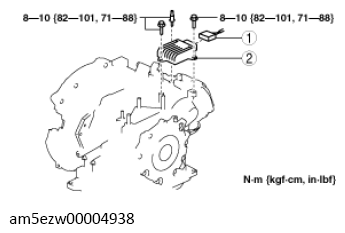

    Fig 1: TCM Components With Torque Specification
    G13727494Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Connector
    2 TCM
