Oil Pressure Switch Removal/Installation

WARNING:
  • Do not perform the servicing while the ATF is hot. Otherwise, it could cause severe burns or serious injury.
CAUTION:
  • Do not allow foreign material or water to penetrate the connector. Otherwise, it could cause poor contact and corrosion.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
  2. Disconnect the negative battery cable.
  3. Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
  4. Disconnect the oil cooler from the transaxle. (See OIL COOLER REMOVAL/INSTALLATION .)
    NOTE:
    • Do not disconnect the oil hose and water hose from the oil cooler and transaxle.

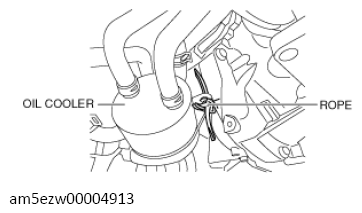

  5. Suspend the oil cooler using rope to secure the disconnected oil cooler.
    G13727465Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • To prevent damage to the parts, do not pull the oil hose and water hose excessively.
    • To prevent damage to the parts, do not twist the oil hose and water hose.
  6. Remove in the order shown in the figure.
  7. Install in the reverse order of removal.

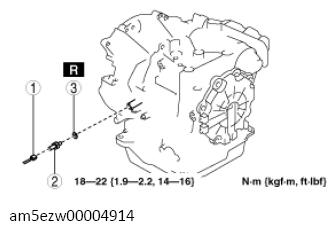

    Fig 1: Oil Pressure Switch Components With Torque Specification
    G13727466Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Connector
    2 Oil pressure switch
    3 Washer
