Secondary Control Valve Body On-Vehicle Installation

Tighten the bolts and GND shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}

BOLT LENGTH SPECIFICATION

Mark	Length (mm {IN})
B	40 {1.6}
C	50 {2.0}

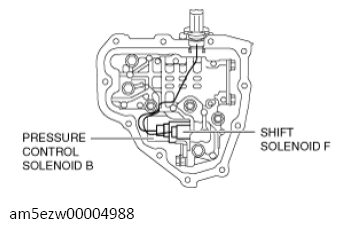

Connect the solenoid valve connector.

Courtesy of MAZDA MOTORS CORP.

HARNESS SIDE CONNECTOR COLOR SPECIFICATION

Solenoid valve	Connector color
Pressure control solenoid B	White
Shift solenoid F	Black

Apply sealant (TB1217E or equivalent) to the contact surface of the oil cover

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Clear oil sealant remaining on the contact surface of the transaxle case and oil cover, and clean the sealant area using detergent oil. Otherwise, oil could leak.
Install the oil cover before the applied sealant starts to harden.
Tightening torque

8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
Install the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
Install the battery tray. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
Install the battery. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
Connect the negative battery cable.
Install the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
Perform the mechanical system test. (See MECHANICAL SYSTEM TEST .)
Perform the road test. (See ROAD TEST .)
