Key Cylinder Removal Note

  1. Insert the key into the key cylinder and turn it to the ACC position.

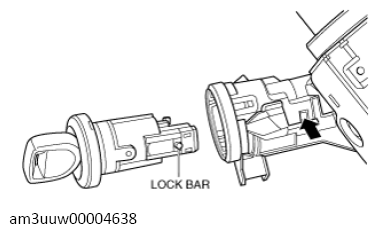

  2. Insert a pin from the position indicated by the arrow in the figure, and while pressing the lock bar with the pin, remove the key cylinder from the steering lock component.
G13727648Courtesy of MAZDA MOTORS CORP.
