Joint Bolt Installation Note

  1. Install the steering shaft component to the steering gear.
  2. After temporarily install the joint bolt to the intermediate shaft joint, verify that the joint bolt is installed to the groove of the steering gear.

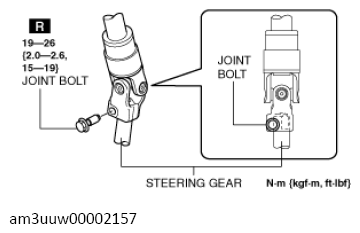

    Fig 1: Steering Gear Joint Bolts With Torque Specification
    G13727652Courtesy of MAZDA MOTORS CORP.
  3. Tighten the joint bolt to the specified torque.
