Steering Gear And Linkage Disassembly: Notes
CAUTION:
- To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.
- Disassemble in the order indicated in the table.

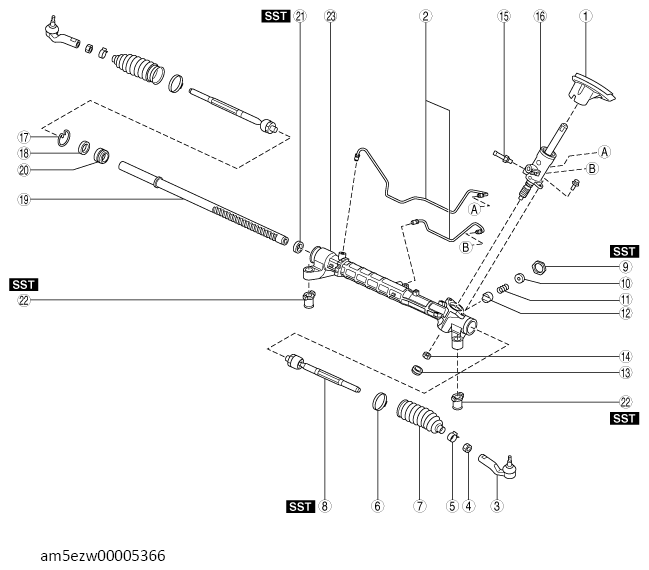

| 1 | Floor seal |
| 2 | Oil pipe |
| 3 | Tie-rod end (See TIE-ROD END DISASSEMBLY NOTE .) |
| 4 | Locknut |
| 5 | Boot clamp |
| 6 | Boot band |
| 7 | Boot |
| 8 | Tie rod (See TIE ROD DISASSEMBLY NOTE .) |
| 9 | Locknut (on adjusting cover) (See LOCKNUT (ON ADJUSTING COVER), ADJUSTING COVER DISASSEMBLY NOTE .) |
| 10 | Adjusting cover (See LOCKNUT (ON ADJUSTING COVER), ADJUSTING COVER DISASSEMBLY NOTE .) |
| 11 | Yoke spring |
| 12 | Support yoke |
| 13 | Housing cover |
| 14 | Locknut (on pinion shaft) |
| 15 | Return pipe |
| 16 | Pinion shaft and valve housing component |
| 17 | Clip |
| 18 | Stopper |
| 19 | Steering rack |
| 20 | Rack bushing. |
| 21 | Oil seal (See OIL SEAL DISASSEMBLY NOTE .) |
| 22 | Mounting rubber (See MOUNTING RUBBER DISASSEMBLY NOTE .) |
| 23 | Gear housing |
