Steering Rack Assembly Note

  1. Apply multipurpose grease to the rack teeth.

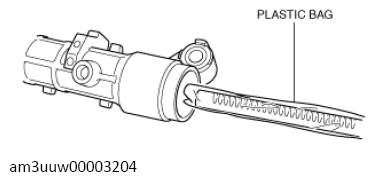

  2. Install a plastic bag to the rack teeth and insert the steering rack in the gear housing.
G13727613Courtesy of MAZDA MOTORS CORP.
