Electric Power Steering Oil Pump Component Removal/Installation: Notes

CAUTION:

• Be careful not to drop the electric power steering oil pump component as the internal parts of the EHPAS Control Module could be damaged. Replace the electric power steering oil pump component if it is subjected to an impact.

1. Remove the front mudguard (RH).

   (See MUDGUARD REMOVAL/INSTALLATION .)

2. Remove the aerodynamic under cover.

   (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)

3. Remove the splash shield (RH).
4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
6. After installation, perform the EHPAS Control Module configuration procedure.

   (See ELECTRO HYDRAULIC POWER ASSIST STEERING (EHPAS) CONTROL MODULE CONFIGURATION .)

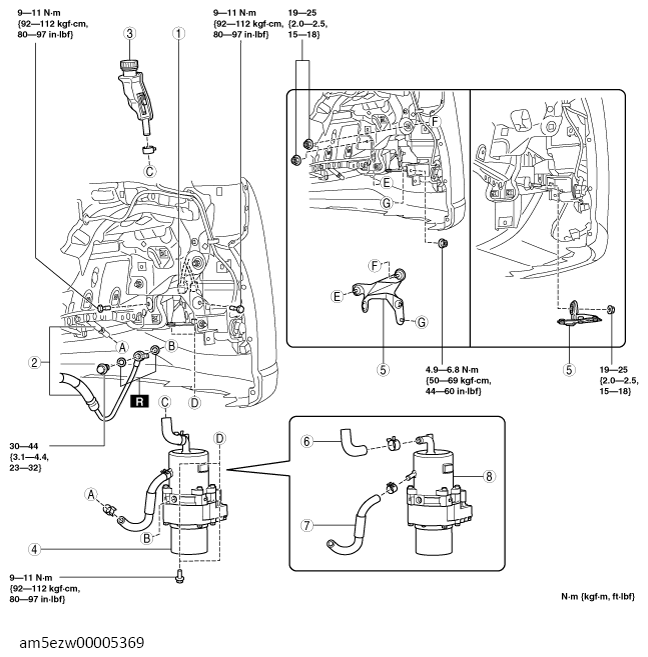

Fig 1: Electric Power Steering Oil Pump Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Connector (See CONNECTOR REMOVAL NOTE .)
2	Power steering pipe component (See POWER STEERING PIPE COMPONENT REMOVAL NOTE .)
3	Sub tank
4	Electric power steering oil pump component (with hoses)
5	Brackets
6	Suction hose
7	Return hose
8	Electric power steering oil pump component
