Electrical Troubleshooting Tools: Ohmmeter

CAUTION:

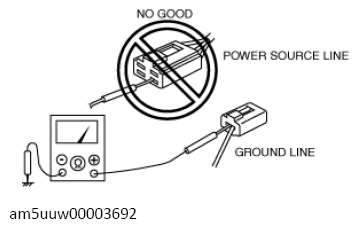

  • Do not connect the ohmmeter to any circuit where voltage is applied. This will damage the ohmmeter.
  • The ohmmeter is used to measure the resistance between two points in a circuit and to inspect for continuity and short circuits.
    G13726348Courtesy of MAZDA MOTORS CORP.
