Cylinder Head Cover Installation Note

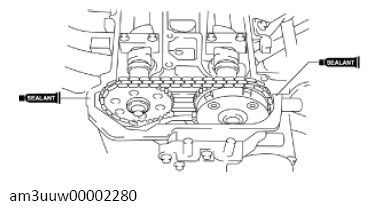

Apply silicone sealant to the mating faces as shown.
CAUTION:
- Install the cylinder head cover before the applied silicone sealant starts to harden.
Courtesy of MAZDA MOTORS CORP.

Thickness

4.0-7.0 mm {0.16-0.27 in}
Install the cylinder head cover with a new gasket.
Tighten the bolts in the order shown.

Fig 1: Cylinder Head Cover Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8.0-9.5 N.m {82-96 kgf.cm, 71-84 in.lbf}
Install the purge solenoid valve installation bracket.

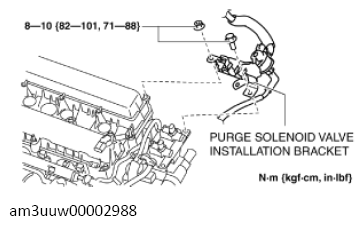

Fig 2: Purge Solenoid Valve Bracket Bolts With Torque Specification

G13726594

Courtesy of MAZDA MOTORS CORP.
