Rear Oil Seal Replacement: Notes

Remove the transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
Remove the flywheel (MTX) or the drive plate (ATX). (See CLUTCH UNIT REMOVAL/INSTALLATION .) (See DRIVE PLATE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

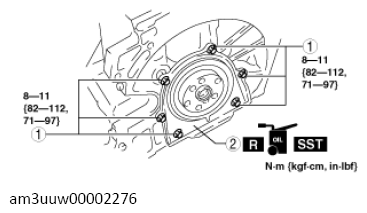

Fig 1: Rear Oil Seal Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Bolt
2	Rear oil seal (See REAR OIL SEAL INSTALLATION NOTE .)
