Exhaust System Insulator Removal/installation Note

1. Remove the member.
   Fig 1: Member Bolts With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
2. Remove the exhaust system insulator in the order shown in the figure.
3. Install in the reverse order of removal.

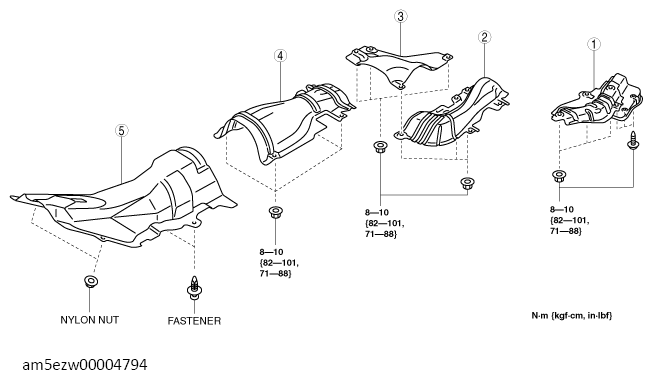

Fig 2: Exhaust System Insulator, Fasteners And Nylon Nuts With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Insulator (No. 1)
2	Insulator (No. 2)
3	Insulator (No. 3) (See INSULATOR (NO. 3) REMOVAL NOTE .)
4	Insulator (No. 4)
5	Insulator (No. 5)
