Oil Pan Installation Note

CAUTION:

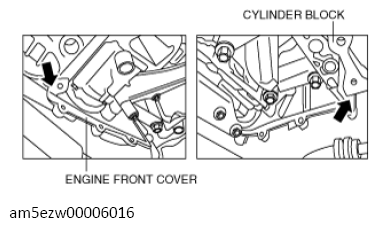

Do not allow the gasket residue to enter the oil pan. Using cleaning fluid, completely remove the oil from the joint. Especially be sure to completely remove oil and gasket residue from the corner section of the engine front cover and the cylinder block.

Courtesy of MAZDA MOTORS CORP.

Apply the silicon sealant in a single, unbroken line.
Install the oil pan before the applied sealant starts to harden.
Using bolts with the old seal adhering could cause cracks in the cylinder block.

Courtesy of MAZDA MOTORS CORP.

NOTE:

The thickness of silicone sealant tends to be thin because the clearance between the oil pan and the transaxle and the engine front cover and transaxle is almost zero during oil pan reinstallation. Allow 3 mm {0.1 in}space maximum between the engine and transaxle with the transaxle bolts loosened one full turn before reinstalling the oil pan.

Courtesy of MAZDA MOTORS CORP.

Completely clean and remove any oil, dirt, sealant or other foreign material that may be adhering to the cylinder block, engine front cover and oil pan.
When reusing the oil pan installation bolts, clean any old sealant from the bolts.

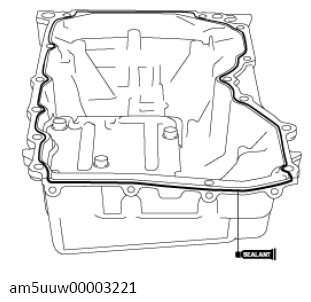

Apply silicone sealant to the oil pan along the inside of the bolt holes as shown in the figure.

Courtesy of MAZDA MOTORS CORP.

Thickness

2.2-3.2 mm {0.09-0.12 in}
Apply silicone sealant to the front edge of the oil pan and to the engine front cover where the two pieces attach together.

Courtesy of MAZDA MOTORS CORP.
Apply an ample amount to the engine front cover where the oil pan is fitted, and also apply an extra amount (a ball of approximately 5 mm {0.2 in} in diameter) of silicone sealant to the corners of the engine front cover and the cylinder block.
Install the oil pan to the cylinder block.

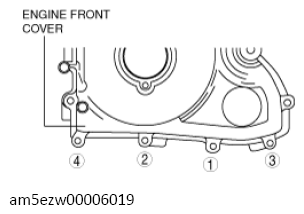

Tighten the four engine front cover bolts in the order shown in the figure.

Fig 1: Engine Front Cover Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Tighten the oil pan bolts in the order shown in the figure.

Fig 2: Oil Pan Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

17-23 N.m {1.8-2.3 kgf.m, 13-16 ft.lbf}
Tighten all the bolts securing the engine and transaxle.

Courtesy of MAZDA MOTORS CORP.

NOTE:

Tightening torque

MTX: 37-52 N.m {3.8-5.3 kgf.m, 28-38 ft.lbf}

ATX: 38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
