Oil Cooler Installation Note
Oil Cooler Installation Note

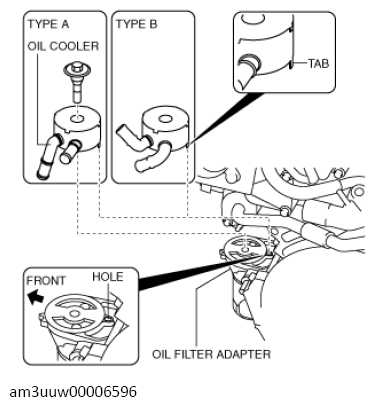

Align one of the positioning tabs on the oil cooler as shown in the figure to the oil filter adapter hole, and install the oil cooler.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
