Radiator Removal Note

  1. Lift the radiator and remove it from the radiator installation holes on the shroud panel.
  2. Move the radiator and condenser to the engine side.

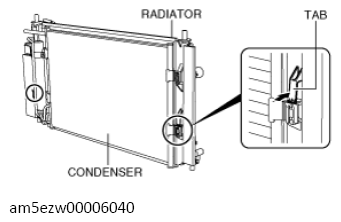

  3. Release the left and right tabs on the lower side of the radiator by pressing them in the direction shown in the figure.
    G13726691Courtesy of MAZDA MOTORS CORP.

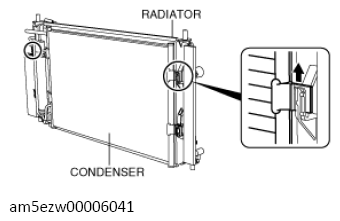

  4. Lift the condenser to remove it from the left and right insertion areas on the upper side of the radiator.
    G13726692Courtesy of MAZDA MOTORS CORP.
  5. Set the condenser apart from the radiator.
  6. Remove the radiator from below the engine compartment.
