Cooling Fan Motor Removal/Installation: Notes
WARNING:
- Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
- Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.
- When you are sure all the pressure is gone, turn the cap using the cloth, and remove it.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
- Disconnect the negative battery cable.
- Remove the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

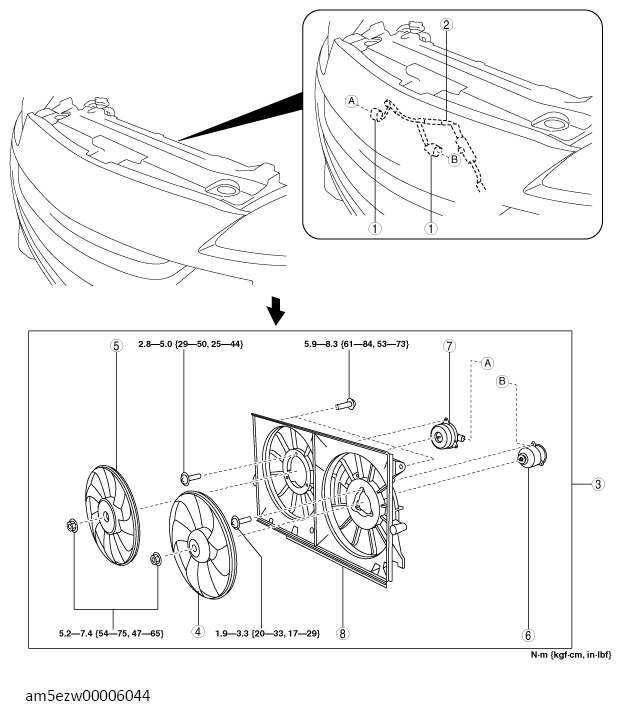

PART DESCRIPTION
| 1 | Cooling fan motor connector |
| 2 | Wiring harness |
| 3 | Cooling fan component (See COOLING FAN COMPONENT REMOVAL NOTE .) |
| 4 | Cooling fan No. 1 |
| 5 | Cooling fan No. 2 |
| 6 | Cooling fan motor No. 1 |
| 7 | Cooling fan motor No. 2 |
| 8 | Radiator cowling |
