Oil Pressure Switch Removal

WARNING:
  • A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.
  1. Disconnect the negative battery cable.
  2. Remove aerodynamic undercover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)

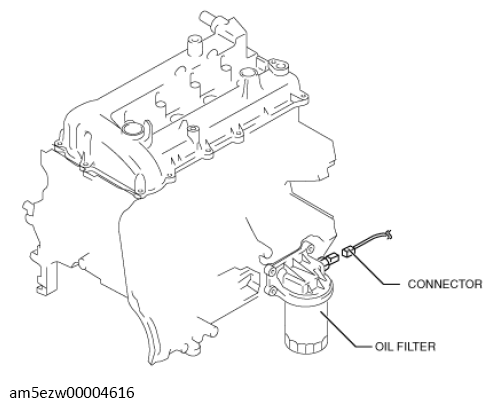

  3. Disconnect the connector.
    G13728779Courtesy of MAZDA MOTORS CORP.

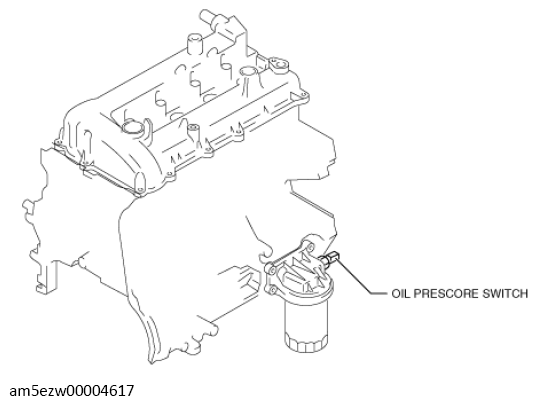

  4. Remove the oil pressure switch.
G13728780Courtesy of MAZDA MOTORS CORP.
