Information Display Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  4. Remove the switch panel. (See SWITCH PANEL REMOVAL/INSTALLATION .)
  5. Remove the screws.

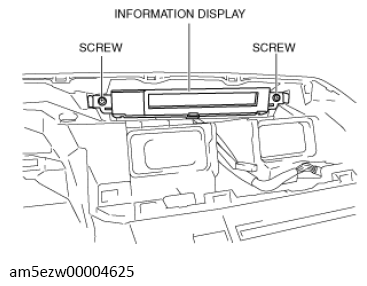

    G13728752Courtesy of MAZDA MOTORS CORP.
  6. Press the instrument cluster in the direction of the arrow shown in the figure while avoiding the tabs and pull out it.

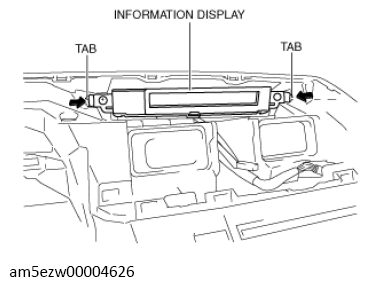

    G13728753Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the connector.

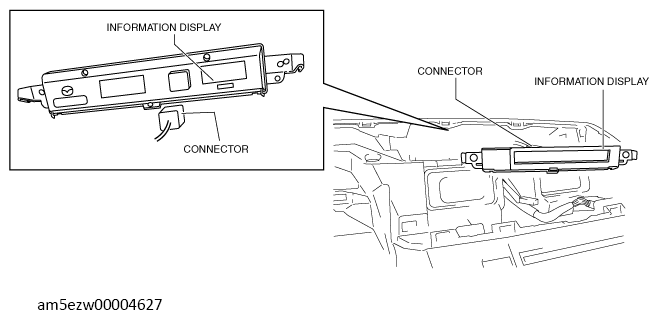

    G13728754Courtesy of MAZDA MOTORS CORP.
  8. Remove the information display.
  9. Install in the reverse order of removal.
