DTC C1109-64: DSC Off Switch (DSC): Notes
DTC C1109:64 (DYNAMIC STABILITY CONTROL) DETECTION CONDITION AND POSSIBLE CAUSE
| DTC |
C1109:64 |
DSC OFF switch |
| DETECTION CONDITION |
- Continuous ON signal from the DSC OFF switch for 10 s or more is detected.
|
| FAIL-SAFE FUNCTION |
- Permits the control and does not illuminate each warning/indicator light.
|
| POSSIBLE CAUSE |
- The driver pressed and held the DSC OFF switch for 10 s or more.

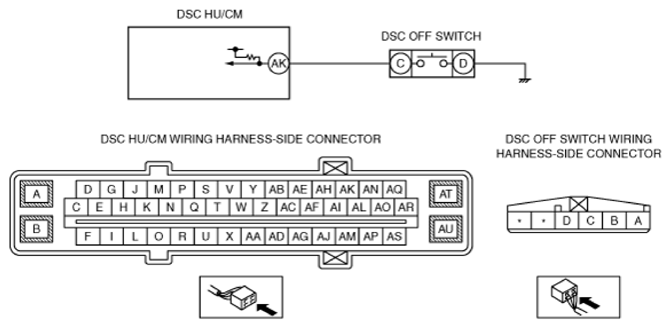

- Short to ground in the wiring harness between DSC OFF switch and DSC HU/CM terminal AK
- DSC OFF switch malfunction
- Poor connection at connectors (female terminal)
|
 Courtesy of MAZDA MOTORS CORP.
|
